αGEL Products
Shock Protection
- Gel Sheets
(θ-Gel) - These highly durable silicone shock absorption sheets are the perfect combination of softness and strength.
| Product | GEL-Type | Options |
|---|---|---|
| θ-Gel (Theta-Gel) |
Theta-7 |
GEL with PET Film with Adhesive Tape with Powder Non-tacky |
| Theta-5 | ||
| Theta-6 | ||
| Theta-8 |
Product Details
Product Details
- Gel Tapes, Gel Chips(GT・GC)
- GEL Tape and GEL Chips are cuttable shock absorbent sheets that are adhesive on one side for easy application.
| Product | Size（mm） | Thickness（mm） |
|---|---|---|
| Gel Tapes （GT） |
L:1,000 W:10/20 |
t1/t2/t3 |
| Gel Chips （GC） |
L:10/15/20 W:10/15/20 |
t3/t5/t10 |
Product Details
Product Details
- Foam-Type Gels(NP)
- NP GEL is a light and durable silicone foam material.
| Product | Size（mm） | Thickness（mm） |
|---|---|---|
| NP Gel （Green） |
L:2,000 W:450 |
t3 |
| NP Gel （White） |
L:1,000 W:300 |
t6 |
Product Details
Product Details
Vibration Control

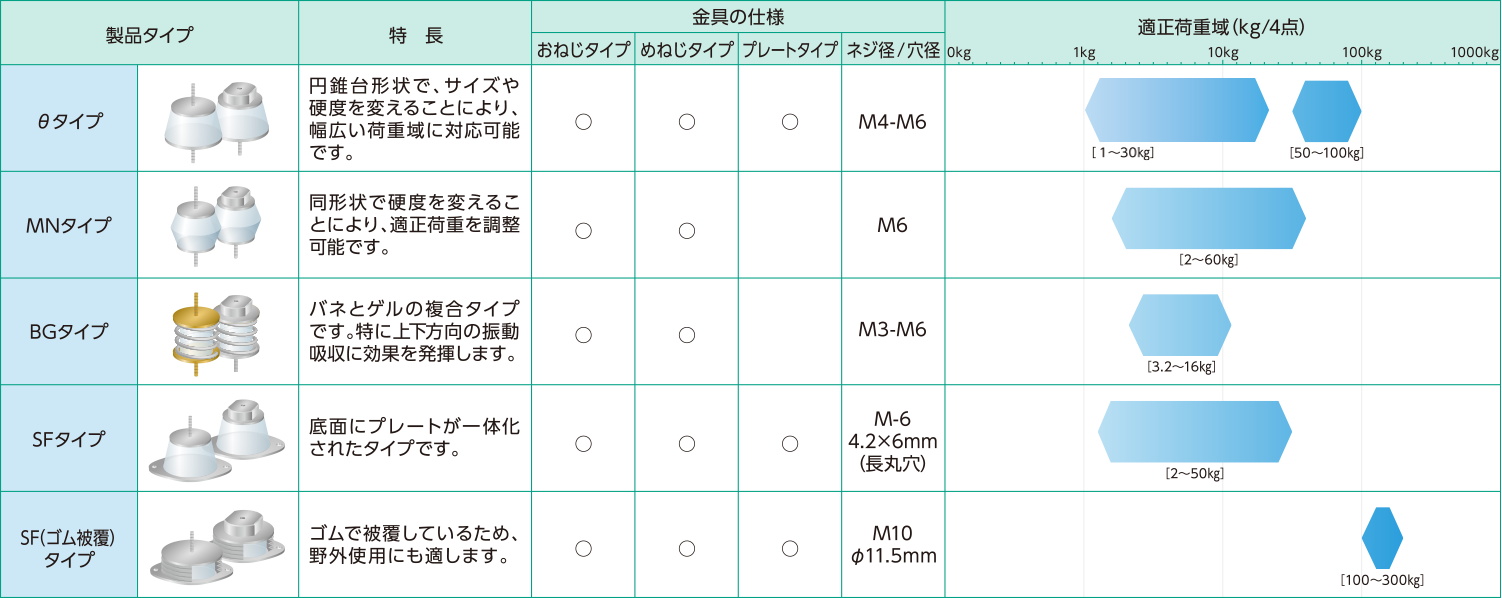

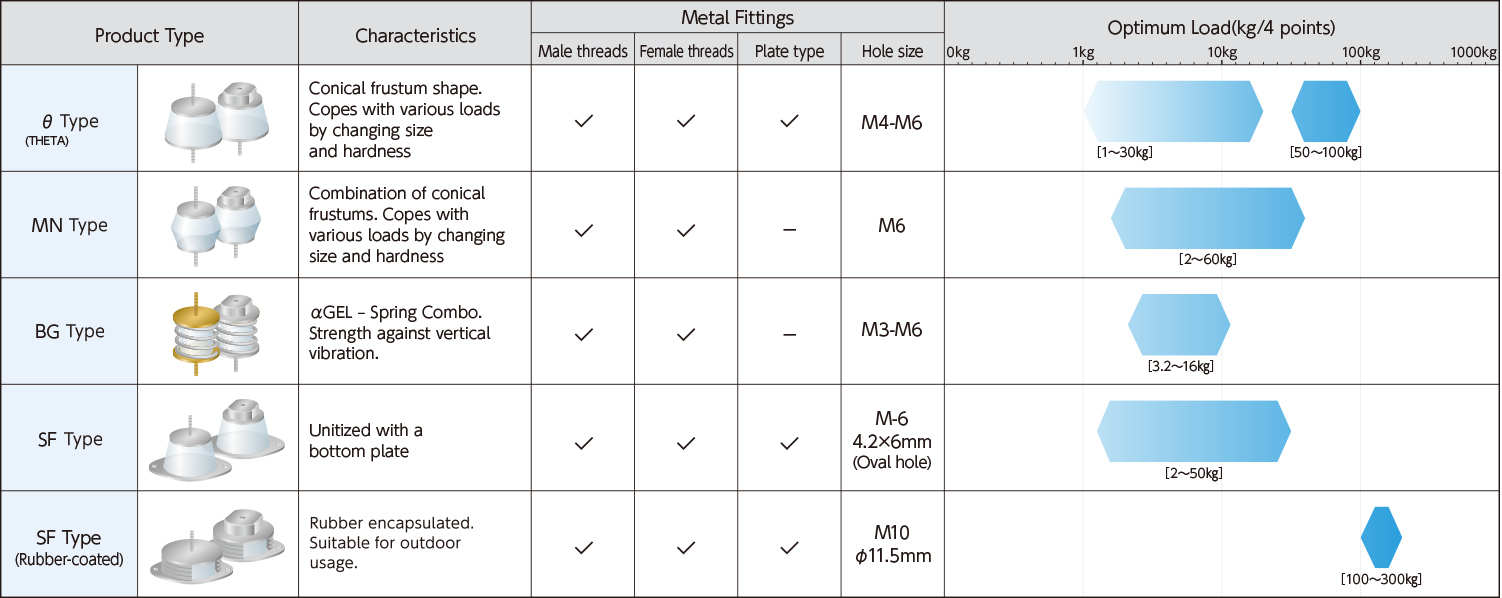

- Mounted Type
- These simply designed insulators support the product and effectively isolate vibrations.
| Product | Configuration | Load Range |
|---|---|---|
| θ Type | Top / Bottom: Bolts | Light |
| MN Type | Top / Bottom: Bolts | Middle |
| θ-TW Type | Top / Bottom: Bolts | Heavy |
| BG Type | Top / Bottom: Bolts with Spring |
Light |
| SF Type | Top: Bolt Bottom:Plate with holes |
Light ～ Middle |
| SF Type （With Rubber Cover） |
Top: Bolt Bottom:Plate with holes With rubber cover |
Heavy |
Product Details
Product Details

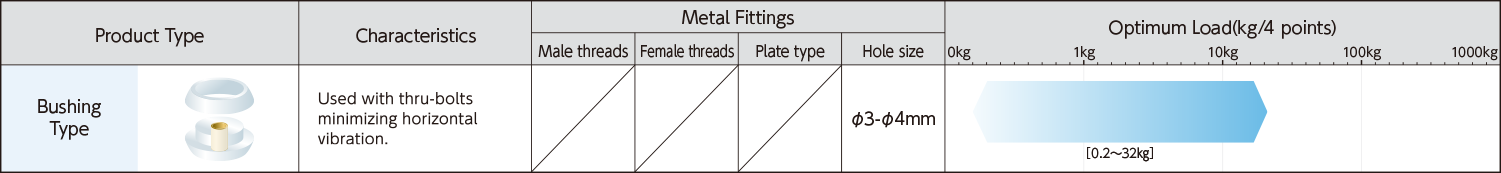

- Bush-Type
- These anti-vibration bushings are secured with screws.
| Product | Optimum Load（kg/at 4 points） |
|---|---|
| S | 0.2～0.75 |
| A-1/A-2 | 0.5～4 |
| B-1/B-2 | 4～32 |
Product Details
Product Details

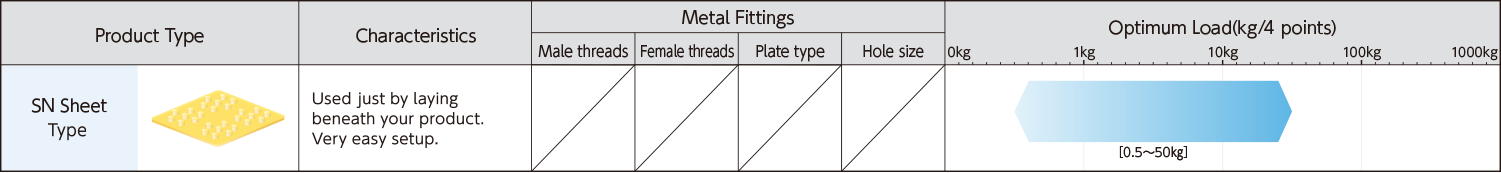

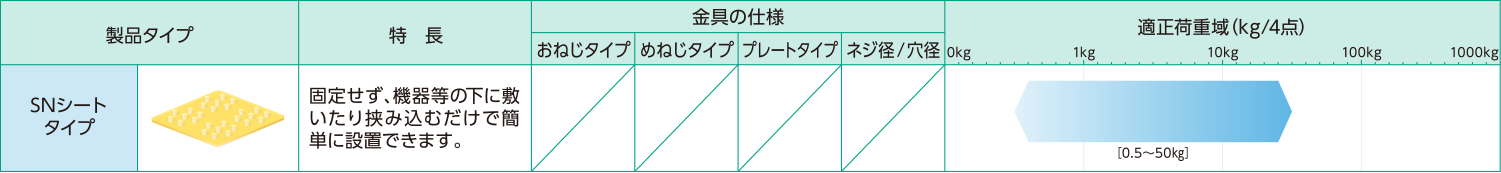

- Sheet-Type
- SN-Sheets are anti-vibration sheets that work by simply placing them under a product.
| Product | Optimum Load（kg/at 4 points） |
|---|---|
| SN-2（Yellow） | 0.5～2 |
| SN-5（Green） | 2～5 |
| SN-15（Orange） | 5～15 |
| SN-50（Blue） | 15～50 |
Product Details
Product Details
- UV Curing Gel(CIPD)
- Our CIPD (Cured-In-Place-Damping) silicone anti-vibration material is sold as a liquid that is cured in place with UV light.
| Product | Complex Modulus：G*（10Hz/Pa） |
|---|---|
| UV Curing Gel(CIPD) | 2,700～24,500 |
Product Details
Product Details
- Anti-vibration design assistance service
- As a development partner for anti-vibration design, we provide total support for vibration test simulation, material and structural design, vibration measurement, and performance evaluation.
| Overview | Detail |
|---|---|
| Vibration test simulation |
Structural and Multibody dynamics analysis |
| Material and Structural Design |
Optimization in hardness. shape and numbers of support points |
| Vibration measurement and Performance evaluation |
Frequency response / Damping characteristics (viscoelasticity) measurement |
Product Details
Product Details
Thermal Control
- Sheet-Type
- The COH Line is a series of heat dissipation sheets made of highly soft silicone with added thermal conduction functionality.
| Number of products | 42 products |
| Thermal conductivity （MIN～MAX） |
1.2〜20W/mK |
| Specification | Highly conductive Standard High electronic insulation Non-silicone |
Product Details
Product Details
- Liquid-Type
- The DP liquid type (grease, putty, two-component curing) heat dissipation materials can be filled and applied to heat sources to fill small gaps to the cooling parts such as heat sinks. The molecular structure was manipulated, such that they don't drip or vaporize to provide stable heat dissipation over the long term.
| Number of products | 22 products |
| Thermal conductivity （MIN～MAX） |
0.55〜8.0W/mK |
| Specification | Putty, 2 Component Grease, Non-silicone |
Product Details
Product Details
- EMI Shielding-Type
- The RE heat dissipation materials can achieve EMI shielding and heat dissipation by simply attaching them to electronic components. Combining high thermal conductivity and electromagnetic wave absorption characteristics, they solve problems of heat and electromagnetic wave noise at once.
| Number of products | 7 products |
| Thermal conductivity （MIN～MAX） |
0.7〜5.0W/mK |
| Specification | Electromagnetic wave absorption Electromagnetic wave shielding |
Product Details
Product Details
- Double-Sided Tapes
- The TP double-sided tape heat conductive materials have a high adhesive reliability and can be used as a means of adhesion and heat dissipation at the same time. Due to being extremely thin, they conduct heat efficiently with low thermal resistance.
| Number of products | 7 products |
| Thermal conductivity （MIN～MAX） |
0.9〜2.0W/mK |
| Specification | Silicone, Non-silicone |
Product Details
Product Details
- Non-Silicone-Type
- These non-silicone type heat dissipation materials do not contain low molecular weight siloxane. We have a rich product lineup such as sheets, liquids (grease, putty), double-sided tapes, etc. Since low molecular weight siloxane gas is not generated, problems such as contact failure do not occur.
| Number of products | 14 products |
| Thermal conductivity （MIN～MAX） |
1.5〜13W/mK(sheet) 1.3〜4.5W/mK(Liquid) 0.9〜2.0W/mK (Double-Sided Tapes) |
| Specification | Sheet, Double-Sided Tapes Liquid(Putty, Grease) |
Product Details
Product Details
Optical Bonding
- Silicone OCA
- A silicone Optical Clear Adhesive (OCA) that fills air gaps between components in LCD displays, improving brightness and contrast.
| Product | Thickness（mm） | Width（mm） |
|---|---|---|
| K120E(-D) | t0.175/t0.2/ t0.25/t0.3/ t0.5 |
460 |
| K120E(-D) | t0.8/t1.0 | 440 |
| K95E(-D) | t1.2/t1.5/ t1.8 |
400 |
Product Details
Product Details
Haptic Management
- Haptic Sample Kit
- HAPTICS OF WONDER - 12 Haptics αGEL Sample Kit, configured focusing upon the tactile sense (HAPTICS), which is felt throughout human total body, is a material experience kit.
| Product | size |
|---|---|
| Haptic Sample Kit | （Outer Dimensions） W132mm x L367mm x H23mm |
| （Product） W45mm x L45mm x t16mm |
Product Details
Product Details
Water & Dust Proof
- Gasket(CIPG)
- Alpha GEL Cured-In-Place Gasket(CIPG) is applied with an automated system directed by 3D plotting software and cured in place with UV light.
| Product | Material |
|---|---|
| TUQ75K | Silicone |
| TUA225K | Acrylic |
Product Details
Product Details
