αGEL Solutions
Heat Dissipation
By adding thermal conductivity to an extremely soft version Alpha GEL, we created Alpha GEL Thermal Interface Material products, a highly thermally conductive material able to dissipate heat while also efficiently eliminating gaps between surfaces. Alpha GEL is nonflammable and electrically nonconductive, making it a perfect choice for reducing loads on PCBs. We recommend Alpha GEL as a heat dissipation solution for a wide variety of applications.
Characteristics
- ●High Thermal Conductivity and Softness
- Alpha GEL's flexibility and high thermal conductivity of up to 20W / mK make for excellent heat dissipation capabilities.
- ●Extensive product lineup
- We offer a wide product lineup such as sheet and liquid (grease, putty, two-component curing type) materials, EMI shielding products, double-sided tapes, non-silicone materials etc. Products can be customized according to specific needs and applications.
- ●Adhesion and Malleability
- Even the smallest cracks and crevices can be filled with Alpha GEL, eliminating air gaps and ensuring the most efficient heat transfer possible.
- ●Low Rebound and Compressive Stress
- Alpha GEL’s low rebound reduces load on PCBs and surrounding components.Lambda GEL compresses easily, absorbing dimensional tolerances.
- ●Long-term Reliability
- Our products can be used in a wide temperature range (-60°C to 200°C). They are highly flame retardant and electrically insulating. Furthermore they exhibit stable performances over the long term.

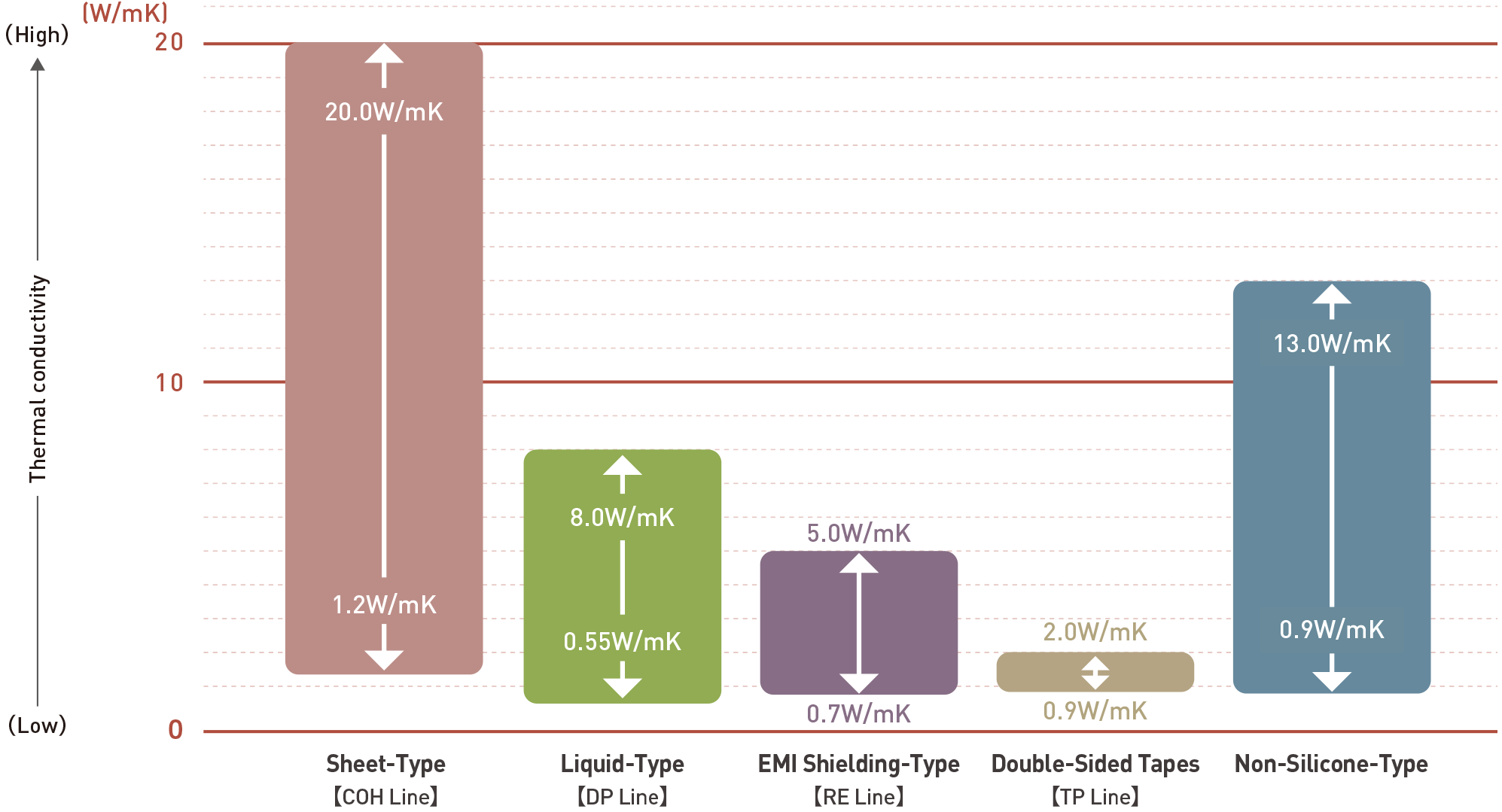

Table of thermal conductivity (by product group)

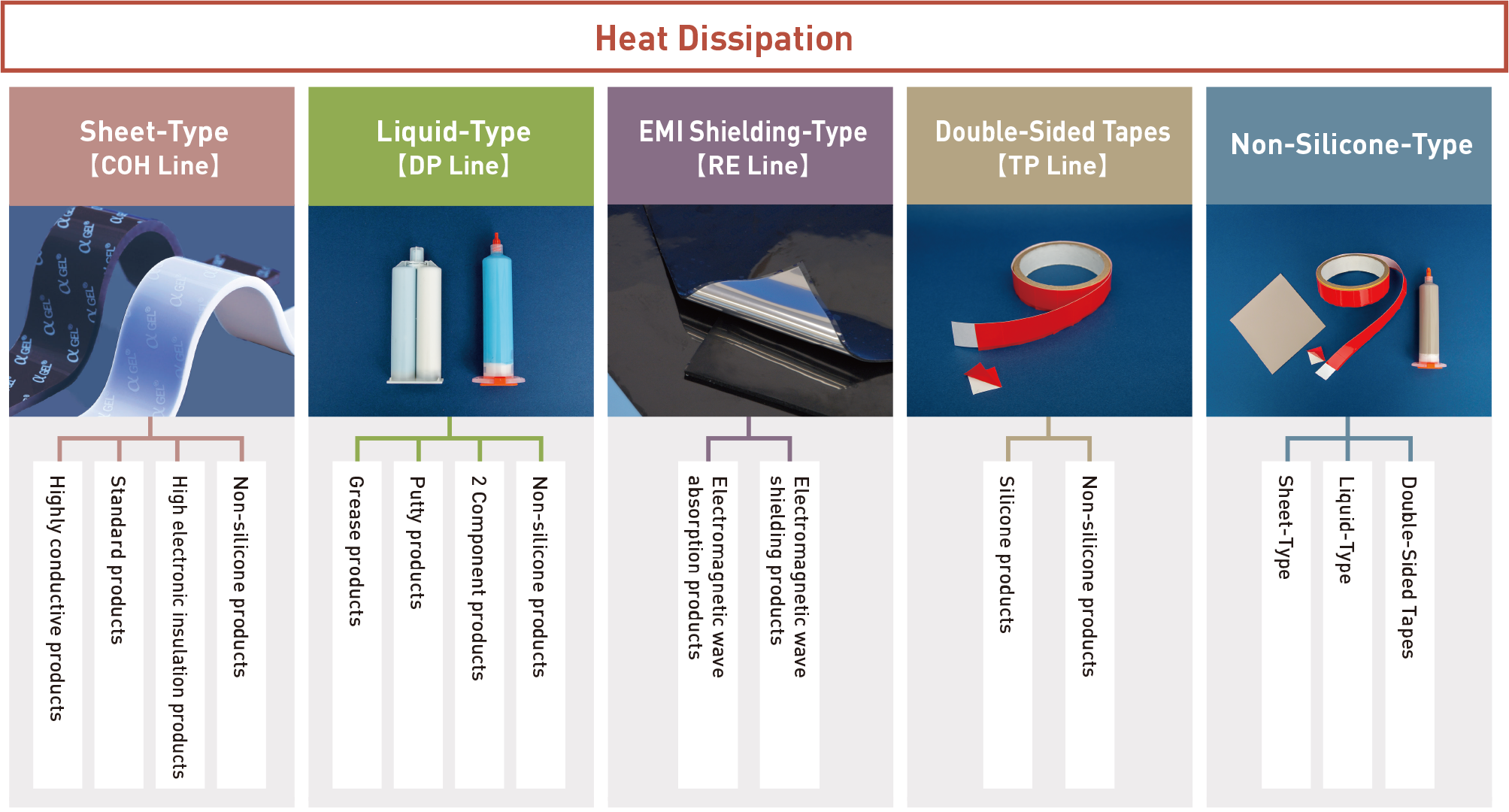

Product lineup

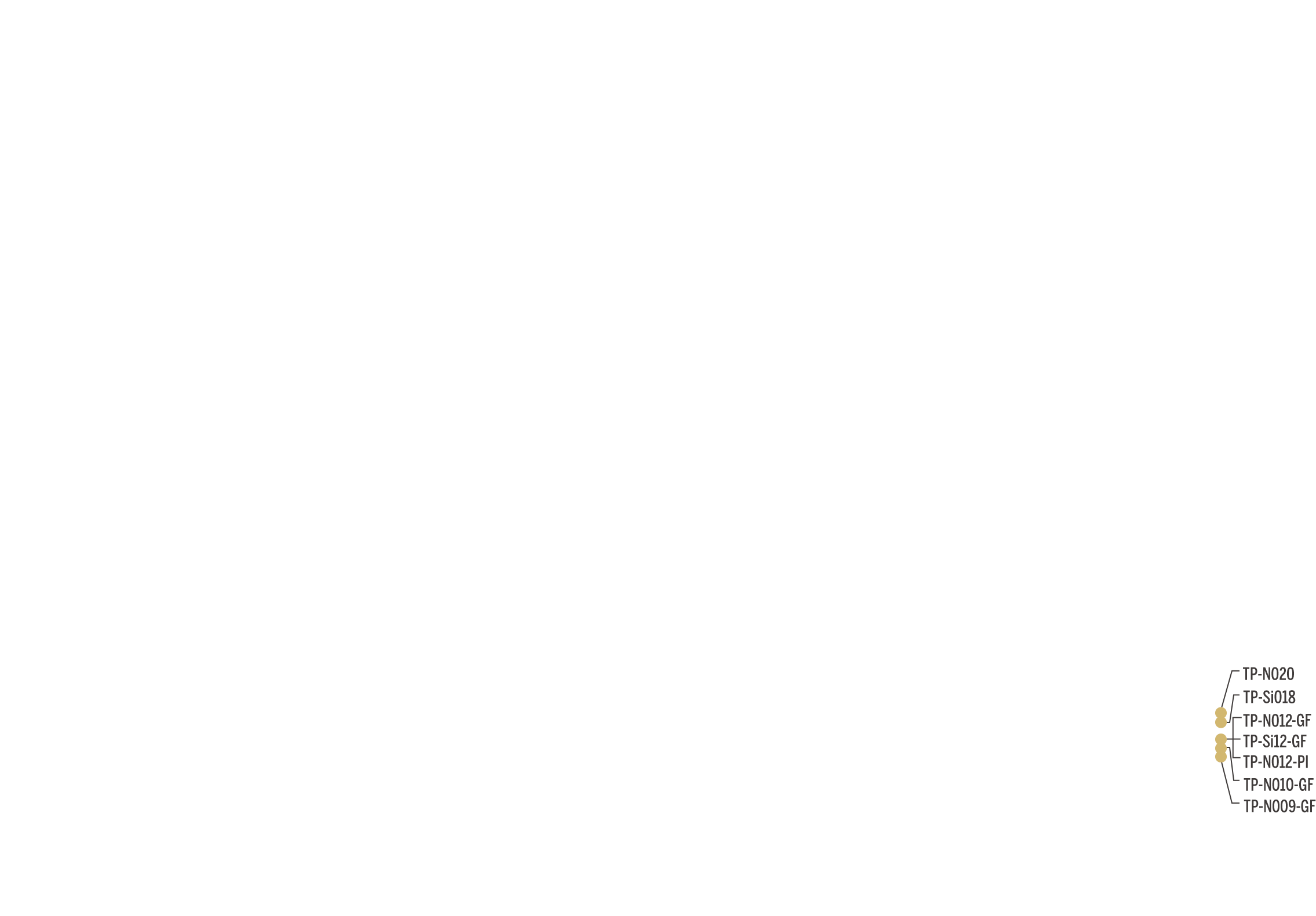

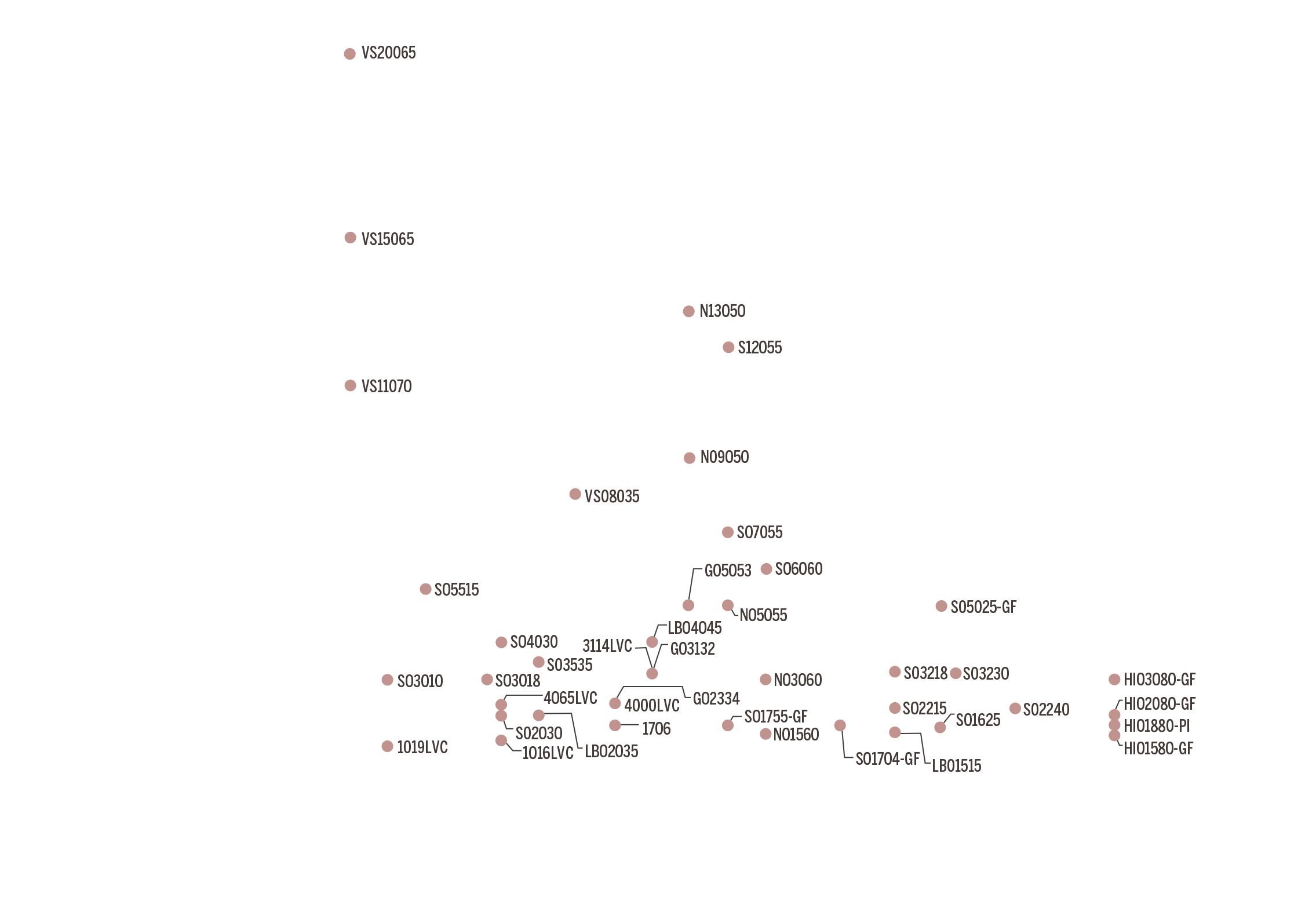

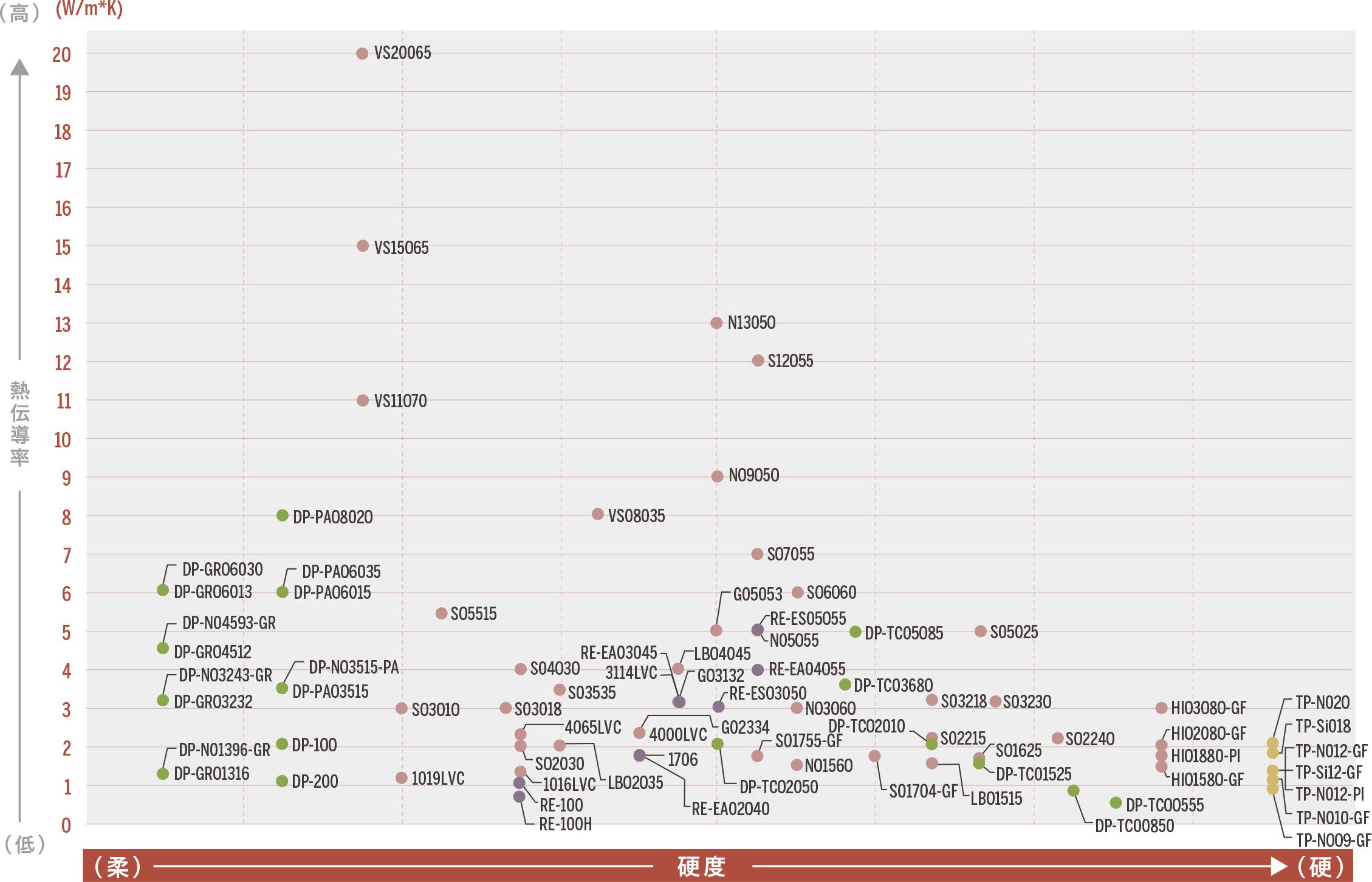

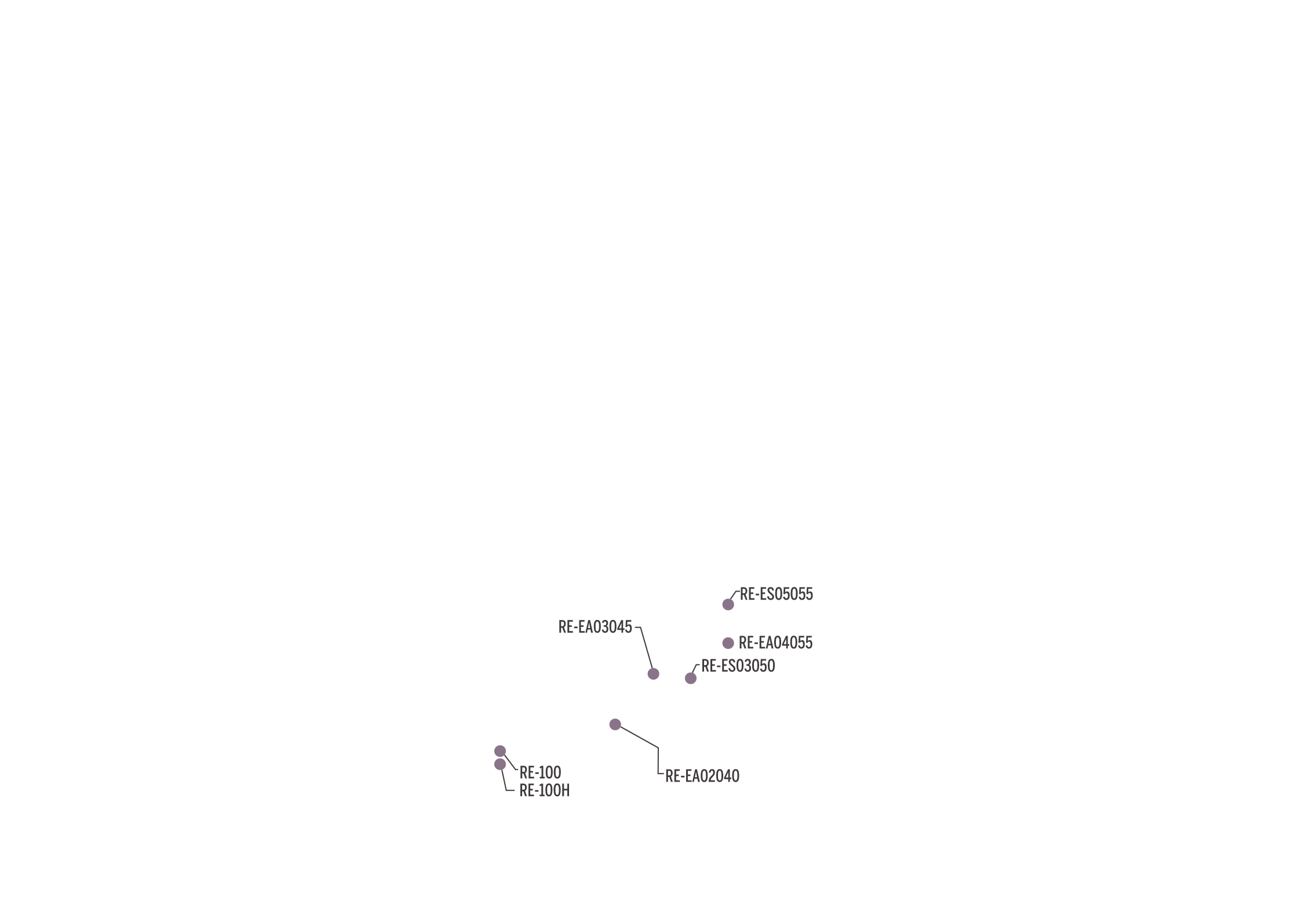

Table of thermal conductivity（By product / By hardness）

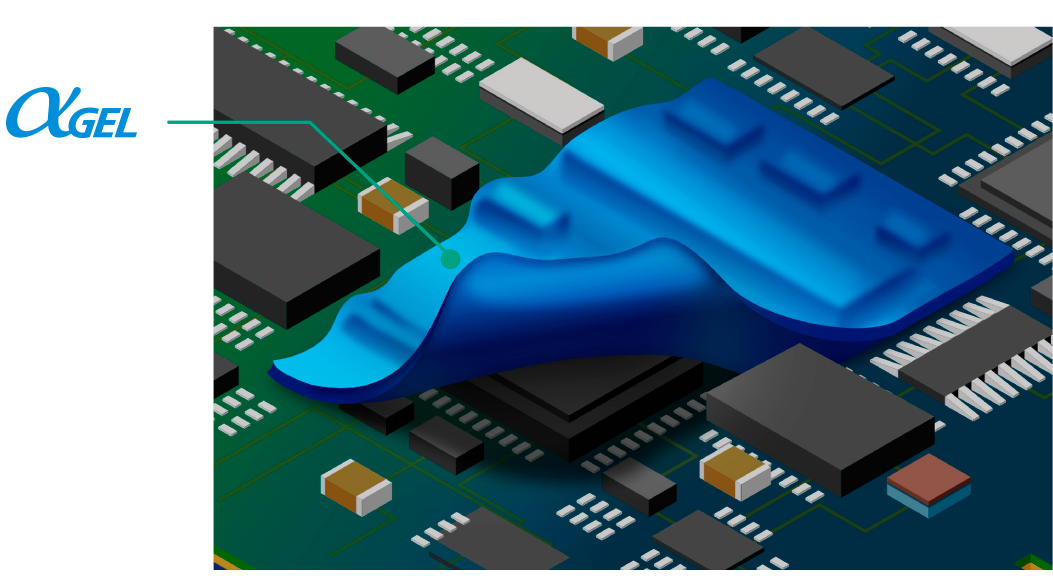

Application Example

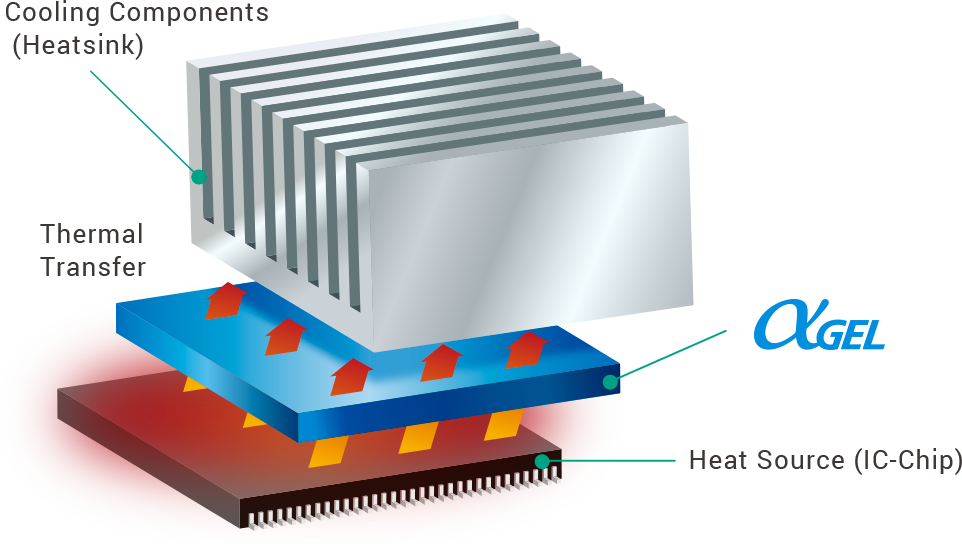

Alpha GEL shows excellent thermal conduction functionality when placed between a heat source and heat sink.
Mechanism
Without Alpha GEL
With Alpha GEL
Without Alpha GEL
With Alpha GEL
Applications
Automotive
Electronics & Industry
Home & Office
Products
- Sheet-Type
- The COH Line is a series of heat dissipation sheets made of highly soft silicone with added thermal conduction functionality.
| Number of products | 42 products |
| Thermal conductivity （MIN～MAX） |
1.2〜20W/mK |
| Specification | Highly conductive Standard High electronic insulation Non-silicone |
Product Details
Product Details
- Liquid-Type
- The DP liquid type (grease, putty, two-component curing) heat dissipation materials can be filled and applied to heat sources to fill small gaps to the cooling parts such as heat sinks. The molecular structure was manipulated, such that they don't drip or vaporize to provide stable heat dissipation over the long term.
| Number of products | 22 products |
| Thermal conductivity （MIN～MAX） |
0.55〜8.0W/mK |
| Specification | Putty, 2 Component Grease, Non-silicone |
Product Details
Product Details
- EMI Shielding-Type
- The RE heat dissipation materials can achieve EMI shielding and heat dissipation by simply attaching them to electronic components. Combining high thermal conductivity and electromagnetic wave absorption characteristics, they solve problems of heat and electromagnetic wave noise at once.
| Number of products | 7 products |
| Thermal conductivity （MIN～MAX） |
0.7〜5.0W/mK |
| Specification | Electromagnetic wave absorption Electromagnetic wave shielding |
Product Details
Product Details
- Double-Sided Tapes
- The TP double-sided tape heat conductive materials have a high adhesive reliability and can be used as a means of adhesion and heat dissipation at the same time. Due to being extremely thin, they conduct heat efficiently with low thermal resistance.
| Number of products | 7 products |
| Thermal conductivity （MIN～MAX） |
0.9〜2.0W/mK |
| Specification | Silicone, Non-silicone |
Product Details
Product Details
- Non-Silicone-Type
- These non-silicone type heat dissipation materials do not contain low molecular weight siloxane. We have a rich product lineup such as sheets, liquids (grease, putty), double-sided tapes, etc. Since low molecular weight siloxane gas is not generated, problems such as contact failure do not occur.
| Number of products | 14 products |
| Thermal conductivity （MIN～MAX） |
1.5〜13W/mK(sheet) 1.3〜4.5W/mK(Liquid) 0.9〜2.0W/mK (Double-Sided Tapes) |
| Specification | Sheet, Double-Sided Tapes Liquid(Putty, Grease) |
