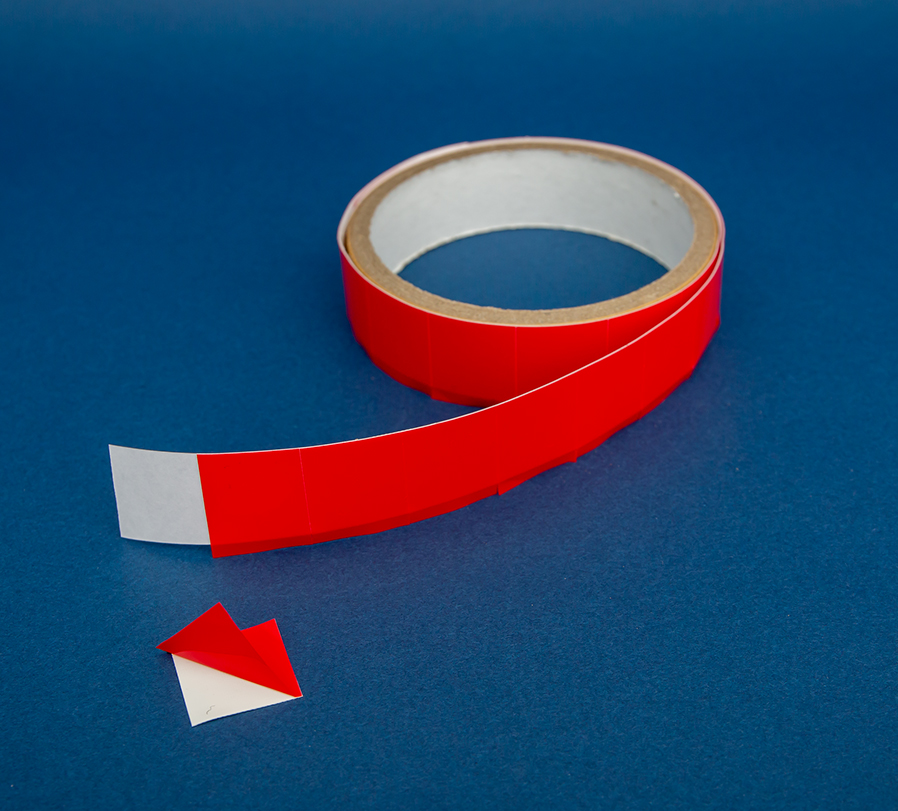

The TP double-sided tape heat conductive materials have a high adhesive reliability and can be used as a means of adhesion and heat dissipation at the same time. Due to being extremely thin, they conduct heat efficiently with low thermal resistance.

Characteristics
●Strong adhesive strength and high thermal conductivity.
●Excellent adhesive reliability that does not require fixating with screws.
●We offer customization according to your needs using various types of adhesives and base materials.
Layer Structure
The structure is sandwiched between separators on both sides. It can be delivered in sheet or roll form.

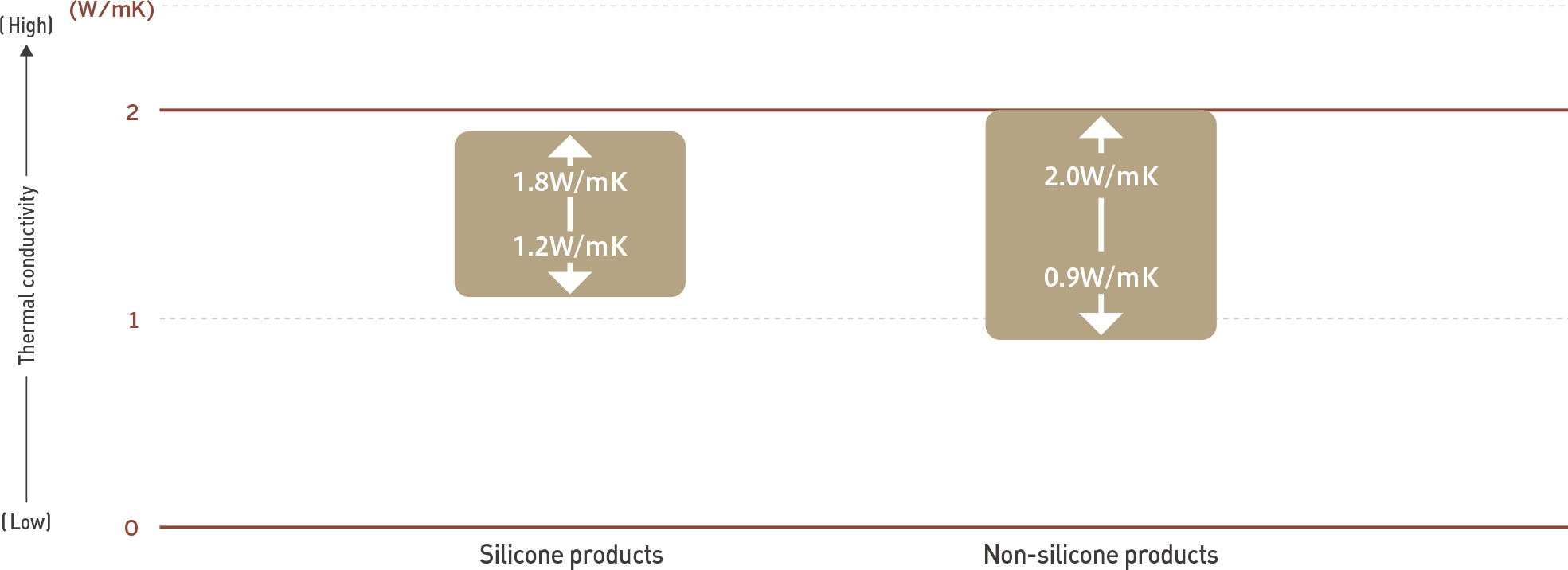

Table of thermal conductivity (By product）

Product lineup（By product / By hardness）（Double-Sided Tapes）

Product Details

*Please swipe left or right to view table below.

【TP Line / Silicone-Type Products Physical Characteristics】

Property Unit Conditions Product Remarks
TP-Si012-GF TP-Si018
Thermal
conductivity		 W/mK - 1.2 1.8 ASTM D5470
Thickness mm - 0.15 0.25 0.2 -
Temperature range ℃ - -60～170 -60～170 -
Color - - White White -
Material - - Silicone Silicone -
Reinforced layer - - Glass Fiber - -
Density - - 1.6 2.3 ASTM D792
Flame retardance - - V-0 Equivalent V-0 Equivalent UL94
Dielectric strength kV DCV 4 5 4.5 ASTM D149
ACV 3 4 3.5 ASTM D149
Volume resistivity Ω-m - >1012 >109 ASTM D257
Surface resistivity Ω - >1011 >109 ASTM D257
Initial tack cm - - - - PSTC-6
Lap shear strength N/㎠ - 74 76 35 ASTM D1002
90° Peeling strength N/inch 25℃ 72h >11 >12 >8 ASTM D3330
80℃
1000h		 >7 >10 >7
85℃/
85%RH
1000h		 >7 >13 >10
-40℃⇔
120℃
500
cycle		 >7 >10 >9.5
Die shear strength N/㎠ 25℃ 113 126 50 -
80℃ 80 85 50
Holding
Power		 Min 1kg　25℃ >10000 >10000 PSTC-7
1kg　80℃ >10000 >10000

▼Show all items

Property Unit
Thermal
conductivity		 W/mK
Thickness mm
Temperature
range		 ℃
Color -
Material -
Reinforced
layer		 -
Density -
Flame
retardance		 -
Dielectric
strength		 kV
Volume
resistivity		 Ω-m
Surface
resistivity		 Ω
Initial tack cm
Lap shear
strength		 N/㎠
90° Peeling
strength		 N/inch
Die shear
strength		 N/㎠
Holding
Power		 Min
Conditions Product Remarks
TP-Si012-GF TP-Si018
- 1.2 1.8 ASTM D5470
- 0.15 0.25 0.2 -
- -60～170 -60～170 -
- White White -
- Silicone Silicone -
- Glass Fiber - -
- 1.6 2.3 ASTM D792
- V-0 Equivalent V-0 Equivalent UL94
DCV 4 5 4.5 ASTM D149
ACV 3 4 3.5 ASTM D149
- >1012 >109 ASTM D257
- >1011 >109 ASTM D257
- - - - PSTC-6
- 74 76 35 ASTM D1002
25℃ 72h >11 >12 >8 ASTM D3330
80℃
1000h		 >7 >10 >7
85℃/
85%RH
1000h		 >7 >13 >10
-40℃⇔
120℃
500
cycle		 >7 >10 >9.5
25℃ 113 126 50 -
80℃ 80 85 50
1kg　25℃ >10000 >10000 PSTC-7
1kg　80℃ >10000 >10000

※Silicone oil may bleed depending upon conditions.
※Low molecular siloxane is included in this product which basically composed of silicone.
※Above data are measured data, not guaranteed specifications.

*Please swipe left or right to view table below.

【TP Line / Non-Silicone-Type Products Physical Characteristics】

Property Unit Conditions Product Remarks
TP-N009-GF TP-N010-GF TP-N012-GF TP-N012-PI TP-N020
Thermal
conductivity		 W/mK - 0.9 1.0 1.2 1.2 2.0 ASTM D5470
Thickness mm - 0.15 0.25 0.15 0.25 0.15 0.25 0.1 0.14 0.25 0.38 -
Temperature
range		 ℃ - -60～120 -60～120 -60～120 -60～120 -60～120 -
Color - - White White White Brown White -
Material - - acrylic acrylic acrylic acrylic acrylic -
Reinforced layer - - Glass Fiber Glass Fiber Glass Fiber Polyimide - -
Density - - 1.6 1.8 1.7 1.6 1.8 ASTM D792
Flame retardance - - - V-0 Equivalent - - - UL94
Dielectric
strength		 kV DCV 3 4 3 4 4 5 5 6 5 7 ASTM D149
ACV 2 3 2 3 3 4 4 5 4 6
Volume resistivity Ω-m - >1010 >1011 >1011 >1012 >109 ASTM D257
Surface resistivity Ω - >1010 >1011 >1011 >1012 >1010 ASTM D257
Initial tack cm - 10 8 11 8 14 12 13 13 10 8 PSTC-6
Lap shear strength N/㎠ - 60 60 50 50 55 60 60 60 45 60 ASTM D1002
90° Peeling strength N/inch 25℃ 72h >10 >12 >5 >6 >6 >8 >10 >10 >9 >11 ASTM D3330
80℃
1000h		 >14 >20 >14 >20 >10 >15 >14 >15 >16 >20
85℃/
85%RH
1000h		 >20 >25 >20 >24 >18 >22 >16 >18 >22 >25
-40℃⇔
120℃
500
cycle		 >15 >20 >27 >28 >13 >19 >14 >14 >14 >17
Die shear strength N/㎠ 25℃ 107 94 100 100 100 100 100 100 100 100 -
80℃ 70 70 70 70 65 65 50 50 50 70
Holding
Power		 Min 1kg　25℃ >10000 >10000 >10000 >10000 >10000 PSTC-7
1kg　80℃ >10000 >10000 >10000 >10000 >10000

▼Show all items

Property Unit
Thermal
conductivity		 W/mK
Thickness mm
Temperature
range		 ℃
Color -
Material -
Reinforced
layer		 -
Density -
Flame
retardance		 -
Dielectric
strength		 kV
Volume
resistivity		 Ω-m
Surface
resistivity		 Ω
Initial tack cm
Lap shear
strength		 N/㎠
90° Peeling
strength		 N/inch
Die shear
strength		 N/㎠
Holding
Power		 Min
Conditions Product Remarks
TP-N009-GF TP-N010-GF TP-N012-GF TP-N012-PI TP-N020
- 0.9 1.0 1.2 1.2 2.0 ASTM D5470
- 0.15 0.25 0.15 0.25 0.15 0.25 0.1 0.14 0.25 0.38 -
- -60～120 -60～120 -60～120 -60～120 -60～120 -
- White White White Brown White -
- acrylic acrylic acrylic acrylic acrylic -
- Glass Fiber Glass Fiber Glass Fiber Polyimide - -
- 1.6 1.8 1.7 1.6 1.8 ASTM D792
- - V-0 Equivalent - - - UL94
DCV 3 4 3 4 4 5 5 6 5 7 ASTM D149
ACV 2 3 2 3 3 4 4 5 4 6
- >1010 >1011 >1011 >1012 >109 ASTM D257
- >1010 >1011 >1011 >1012 >1010 ASTM D257
- 10 8 11 8 14 12 13 13 10 8 PSTC-6
- 60 60 50 50 55 60 60 60 45 60 ASTM D1002
25℃ 72h >10 >12 >5 >6 >6 >8 >10 >10 >9 >11 ASTM D3330
80℃
1000h		 >14 >20 >14 >20 >10 >15 >14 >15 >16 >20
85℃/
85%RH
1000h		 >20 >25 >20 >24 >18 >22 >16 >18 >22 >25
-40℃⇔
120℃
500
cycle		 >15 >20 >27 >28 >13 >19 >14 >14 >14 >17
25℃ 107 94 100 100 100 100 100 100 100 100 -
80℃ 70 70 70 70 65 65 50 50 50 70
1kg　25℃ >10000 >10000 >10000 >10000 >10000 PSTC-7
1kg　80℃ >10000 >10000 >10000 >10000 >10000

※Above data are measured data, not guaranteed specifications.
