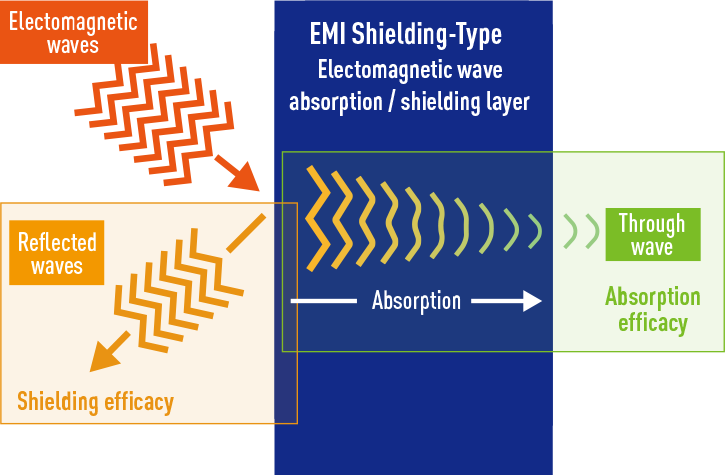

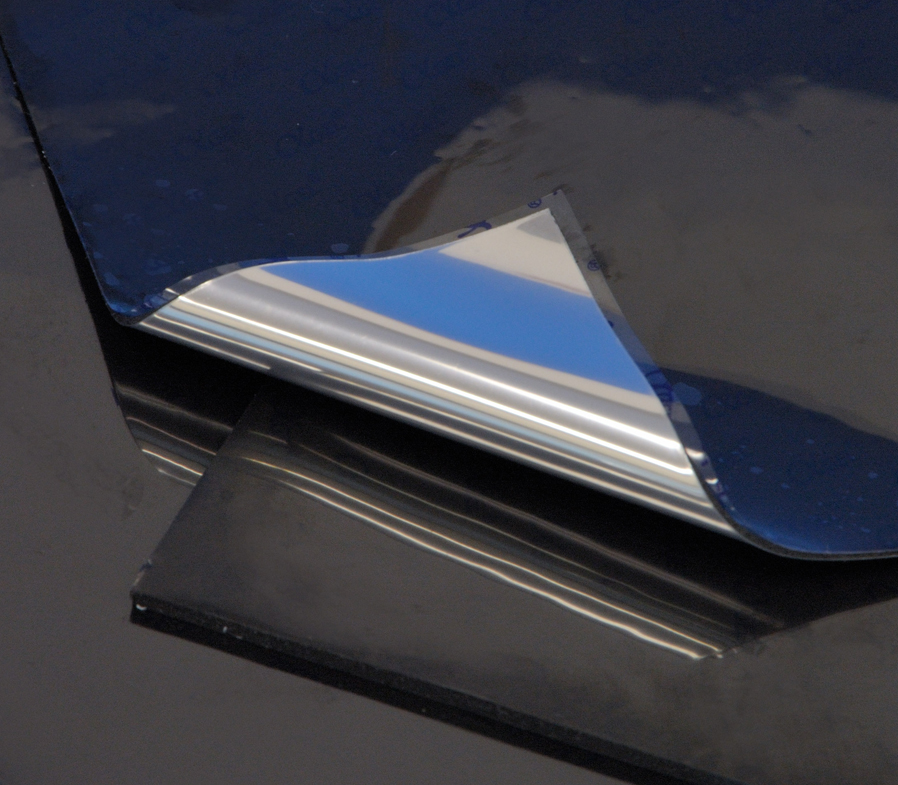

The RE heat dissipation materials can achieve EMI shielding and heat dissipation by simply attaching them to electronic components. Combining high thermal conductivity and electromagnetic wave absorption characteristics, they solve problems of heat and electromagnetic wave noise at once.

Characteristics
●Combining thermal conductivity and electromagnetic wave absorption.
●Just paste it on the target part for electromagnetic wave absorption and shielding.
●Excellent flexibility and adhesiveness making it adhere to even and uneven surfaces alike showing highly efficient heat dissipation and electromagnetic wave absorption capabilities.
●Excellent in electrical insulation and flame retardancy.
●Usable in a wide temperature range with excellent durability.
Application Example

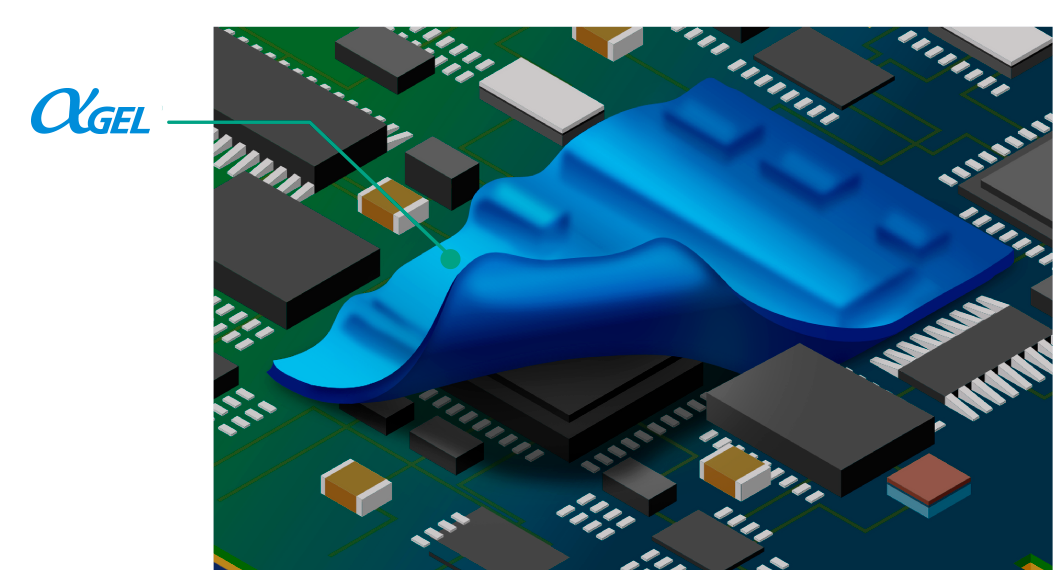

Just adhere the pad to the target location for heat dissipation + EMI shielding.
Technical Information

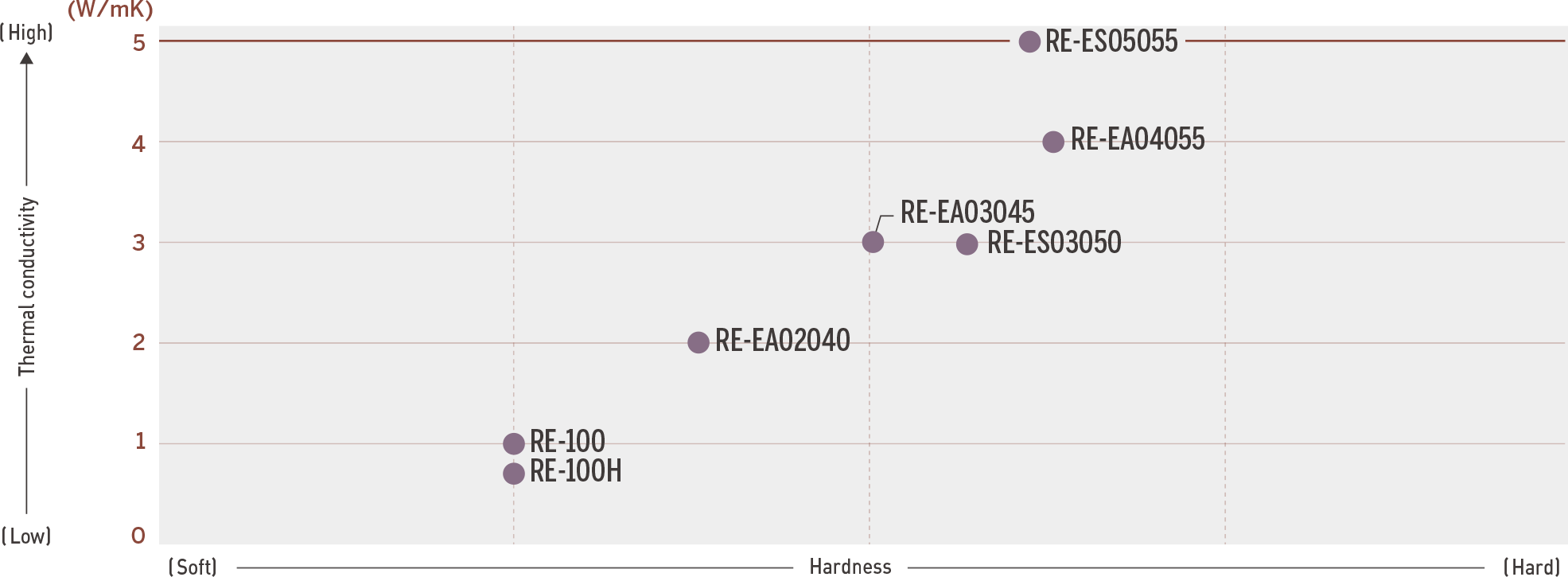

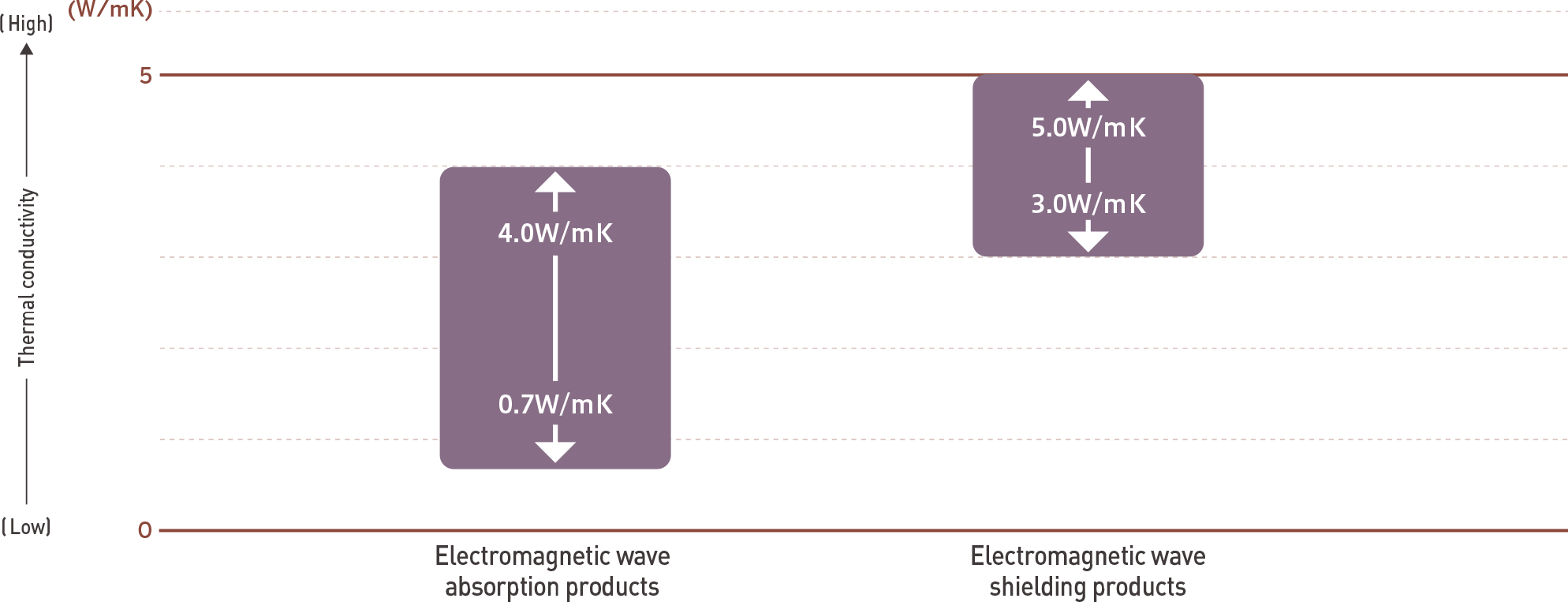

Table of thermal conductivity (By product）

Product lineup（By product / By hardness）（EMI Shielding-Type）

Product Details

*Please swipe left or right to view table below.

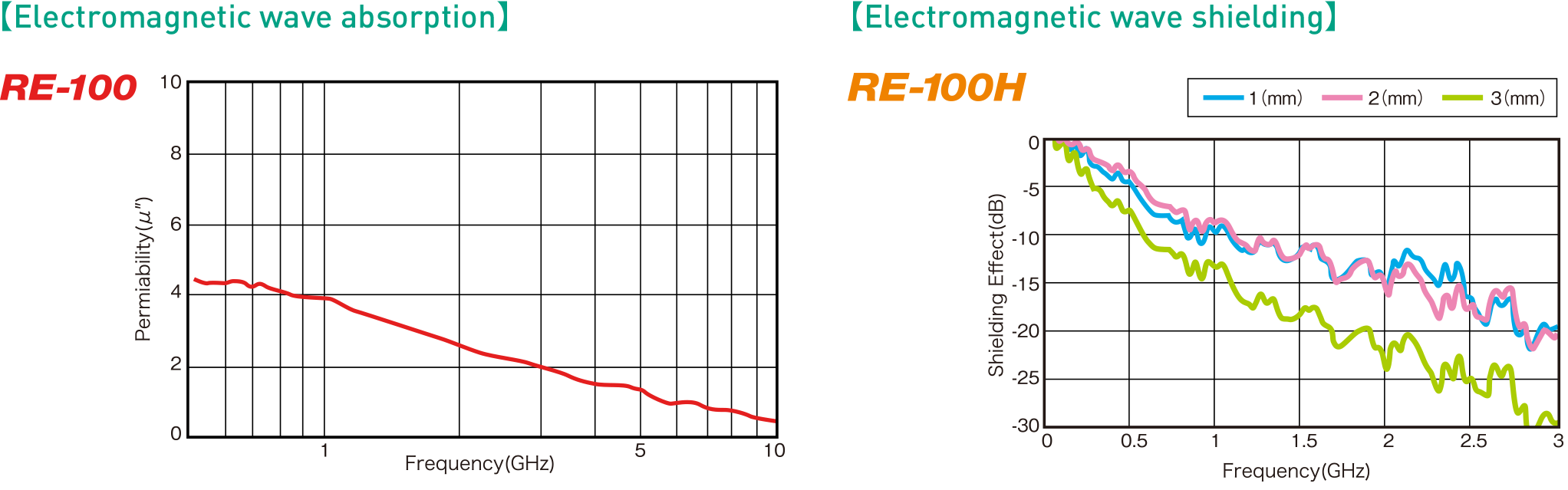

【Electromagnetic Wave Absorption ＆ Electromagnetic Wave Shielding Products Physical Characteristics】

Property Unit Conditions Product Remarks
RE-100 RE-100H RE-
EA02040		 RE-
EA03045		 RE-
EA04055		 RE-
ES03050		 RE-
ES05055
Thermal
conductivity		 W/mK - 1.0 0.7 2.0 3.0 4.0 3.0 5.0 ASTM D5470
Hardness Needle penetration
(1/10mm)		 - 60 60 - - - - - JIS K 2207
ShoreOO - 39 39 40 45 55 50 55 ASTM D2240
Thickness mm - 0.5〜3.0 0.5〜3.0 0.5〜5.0 0.5〜5.0 0.5〜5.0 0.5〜5.0 0.5〜5.0 -
Temperature range ℃ - -40～150 -40～150 -60～180 -60～180 -60～180 -60～180 -60～180 -
Color - - Black Black Dark Gray Dark Gray Dark Gray Blue Red -
Material - - Silicone Silicone Silicone Silicone Silicone Silicone Silicone -
Reinforced
layer		 - - - Reflective layer
with adhesive		 - - - - - -
Density - - 2.9 2.9 4.4 3.9 3.6 2.2 2.1 ASTM D792
Flame retardance - - t0.5-2.0：V-1
t3.0：V-0		 - V-0 Equivalent V-0 Equivalent V-0 Equivalent V-0 Equivalent V-0 Equivalent UL94
Dielectric breakdown strength kV/mm - 3 5 - - - 8 7 ASTM D149
Volume resistivity Ω-m - 1.2*108 1.8×1012 >1012 >1012 >1012 >1010 >1013 ASTM D257
Surface resistivity Ω - - - - - - >1010 >1012 ASTM D257
EMI
Attenuation		 dB/cm 5GHz - - 21 17 11 - - -
7GHz - - 27 26 17 - - -

▼Show all items

Property Unit
Thermal
conductivity		 W/mK
Hardness Needle
penetration
(1/10mm)
ShoreOO
Thickness mm
Temperature
range		 ℃
Color -
Material -
Reinforced
layer		 -
Density -
Flame
retardance		 -
Dielectric
breakdown
strength		 kV/mm
Volume
resistivity		 Ω-m
Surface
resistivity		 Ω
EMI
Attenuation		 dB/cm
Conditions Product Remarks
RE-100 RE-100H RE-
EA02040		 RE-
EA03045		 RE-
EA04055		 RE-
ES03050		 RE-
ES05055
- 1.0 0.7 2.0 3.0 4.0 3.0 5.0 ASTM D5470
- 60 60 - - - - - JIS K 2207
- 39 39 40 45 55 50 55 ASTM D2240
- 0.5〜3.0 0.5〜3.0 0.5〜5.0 0.5〜5.0 0.5〜5.0 0.5〜5.0 0.5〜5.0 -
- -40～150 -40～150 -60～180 -60～180 -60～180 -60～180 -60～180 -
- Black Black Dark Gray Dark Gray Dark Gray Blue Red -
- Silicone Silicone Silicone Silicone Silicone Silicone Silicone -
- - Reflective layer
with adhesive		 - - - - - -
- 2.9 2.9 4.4 3.9 3.6 2.2 2.1 ASTM D792
- t0.5-2.0：V-1
t3.0：V-0		 - V-0 Equivalent V-0 Equivalent V-0 Equivalent V-0 Equivalent V-0 Equivalent UL94
- 3 5 - - - 8 7 ASTM D149
- 1.2×108 1.8*1012 >1012 >1012 >1012 >1010 >1013 ASTM D257
- - - - - - >1010 >1012 ASTM D257
5GHz - - 21 17 11 - - -
7GHz - - 27 26 17 - - -

※Silicone oil may bleed depending upon conditions.
※Low molecular siloxane is included in this product which basically composed of silicone.
※Above data are measured data, not guaranteed specifications.
