αGEL Products Gel Sheets（θ-Gel）

Catalogue Download

These highly durable silicone shock absorption sheets are the perfect combination of softness and strength. GEL Sheets are available in custom hardnesses and shapes. We also offer GEL Sheets adhered to other materials.

Characteristics
●Alpha GEL’s softness allows for deflection required for shock absorption and vibration damping, providing excellent cushioning and vibration damping performance.
●Alpha GEL is exceptionally durable and resistant to weather, ozone, UV radiation, and chemicals.
●Alpha GEL shows very low compression, resulting in long-lasting, stable performance.
●Alpha GEL performs reliably at temperatures between -40°C and 200°C.
●Alpha GEL’s composition makes it harmless to the human body and to the environment, causing no allergies when touched, and emitting no harmful gases when burned.
Application Example

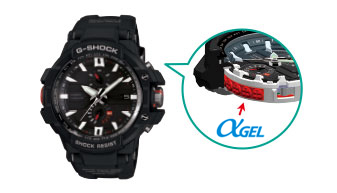

Alpha GEL protects internal components from shock and vibration.
Technical Information

[Rebound Resilience]
Alpha GEL is temperature-independent when compared with other comparable materials.

[Compression Set]
Even after prolonged compression, Alpha GEL returns to its original state.

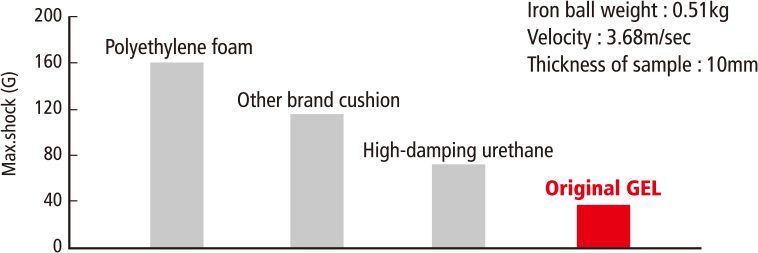

[Maximum Shock : Iron ball drop]

*Please swipe left or right to view table below.

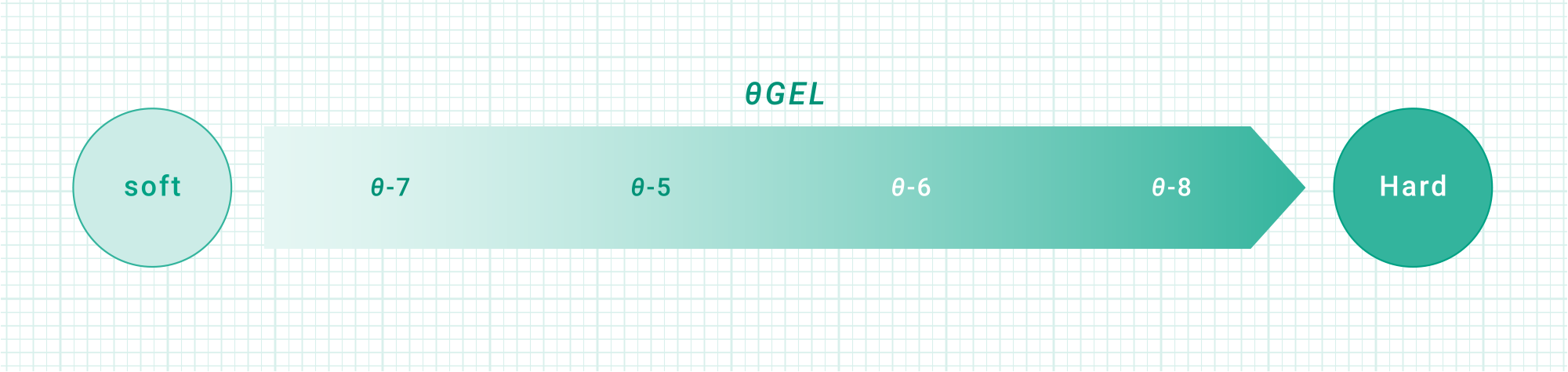

Line-up

Product Details

*Please swipe left or right to view table below.

[Properties of θ-Gel]

Item(unit) Physical Value Remark
θ-7 θ-5 θ-6 θ-8
Appearance Translucent Translucent Translucent Translucent
Specific Gravity 1.06 1.05 1.06 1.07
Hardness Needle Penetration(1/10mm) 100 55 - - JIS K 2207
Asker C - - 33 52.5 JIS K 7312
Tensile Strength(MPa) 0.23 1.17 1.58 2.35 JIS K 6251
Elongation(%) 480 710 480 300 JIS K 6251
Young's Modulus(kPa) 37.5 119.5 670.3 1432.6
Specific Heat(J/g・K) 1.51 1.52 1.51 1.52 DSC
Thermal Conductivity(W/m・k) 0.20 0.20 0.20 0.20
Volume Resistivity(Ω・cm) 2.9×1014 4.0×1014 3.2×1014 6.6×1014 JIS K 6911
Dielectric Breakdown Strength(kV/mm) 16.3 15.1 18.4 18.7 JIS C 2110
Chemical Resistance Toluene × × × × JIS K 6258
Room temperature ×168h
Acetone × × × ×
Methanol 〇 〇 〇 〇
Distilled H2O 〇 〇 〇 〇
Fuel Oil × × × ×
Lubricant Oil × × × ×
NaCl(10%) 〇 〇 〇 〇
HCl(10%) 〇 〇 〇 〇
NaOH(5%) 〇 〇 〇 〇
Temperature Range(℃) -40～200 -40～200 -40～200 -40～200
Item(unit)
Appearance
Specific Gravity
Hardness Needle Penetration
(1/10mm)
Asker C
Tensile Strength
(MPa)
Elongation
(%)
Young's Modulus
(kPa)
Specific Heat
(J/g・K)
Thermal Conductivity
(W/m・k)
Volume Resistivity
(Ω・cm)
Dielectric Breakdown Strength
(kV/mm)
Chemical Resistance Toluene
Acetone
Methanol
Distilled H2O
Fuel Oil
Lubricant Oil
NaCl(10%)
HCl(10%)
NaOH(5%)
Temperature Range(℃)
Physical Value Remark
θ-7 θ-5 θ-6 θ-8
Translucent Translucent Translucent Translucent
1.06 1.05 1.06 1.07
100 55 - - JIS K 2207
- - 33 52.5 JIS K 7312
0.23 1.17 1.58 2.35 JIS K 6251
480 710 480 300 JIS K 6251
37.5 119.5 670.3 1432.6
1.51 1.52 1.51 1.52 DSC
0.20 0.20 0.20 0.20
2.9×1014 4.0×1014 3.2×1014 6.6×1014 JIS K 6911
16.3 15.1 18.4 18.7 JIS C 2110
× × × × JIS K 6258
Room temperature ×168h
× × × ×
〇 〇 〇 〇
〇 〇 〇 〇
× × × ×
× × × ×
〇 〇 〇 〇
〇 〇 〇 〇
〇 〇 〇 〇
-40～200 -40～200 -40～200 -40～200

※Silicone oil may bleed depending upon conditions.
※Low molecular siloxane is included in this product which basically composed of silicone.
※Above data are measured data, not guaranteed specifications.

Dynamic viscoelasticity data

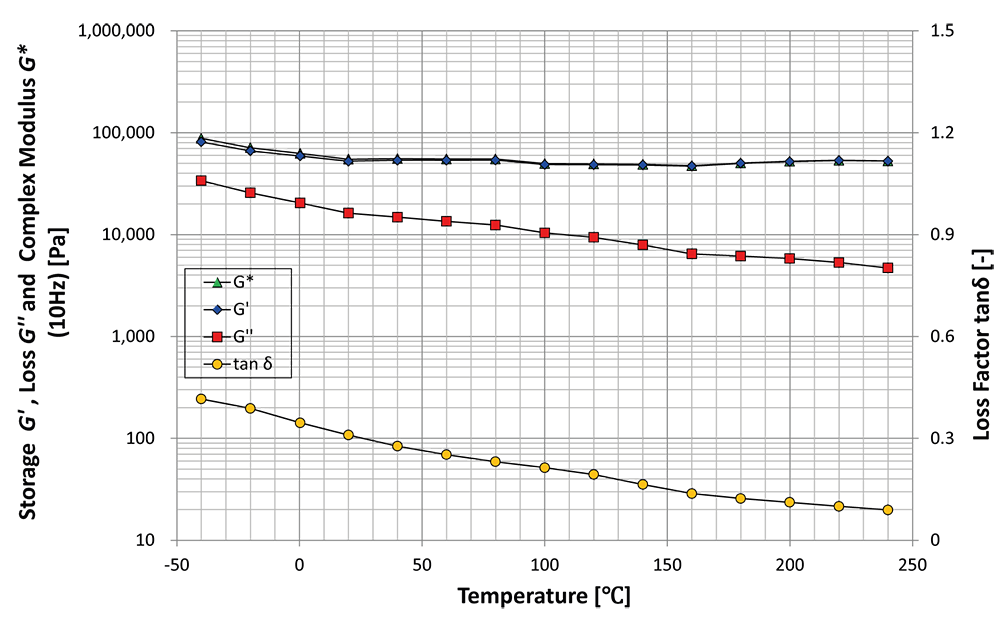

[θ-7, Frequency response]

[θ-7, Temperature response]

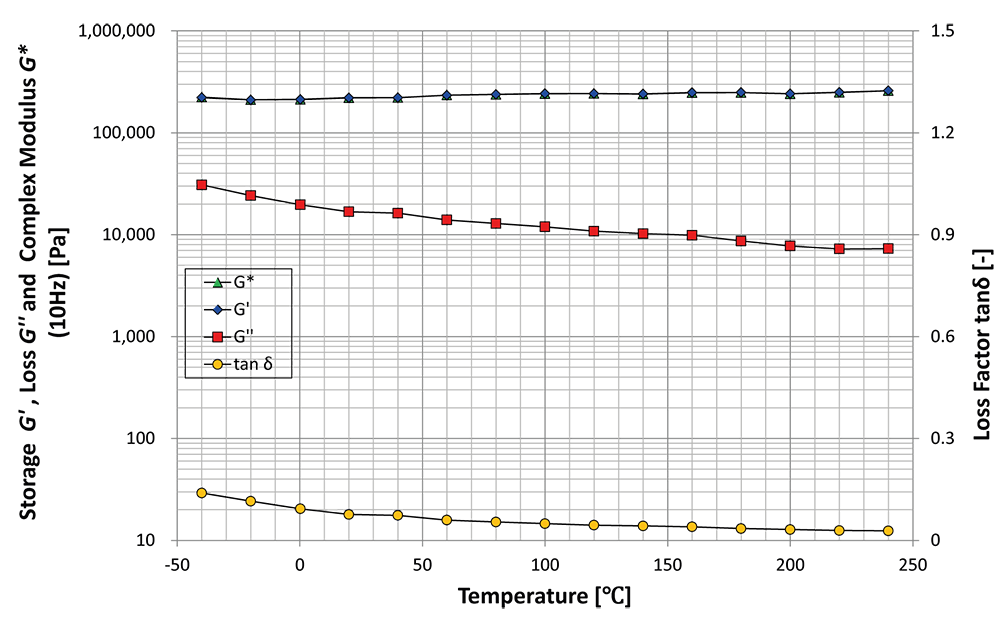

[θ-5, Frequency response]

[θ-5, Temperature response]

[θ-6, Frequency response]

[θ-6, Temperature response]

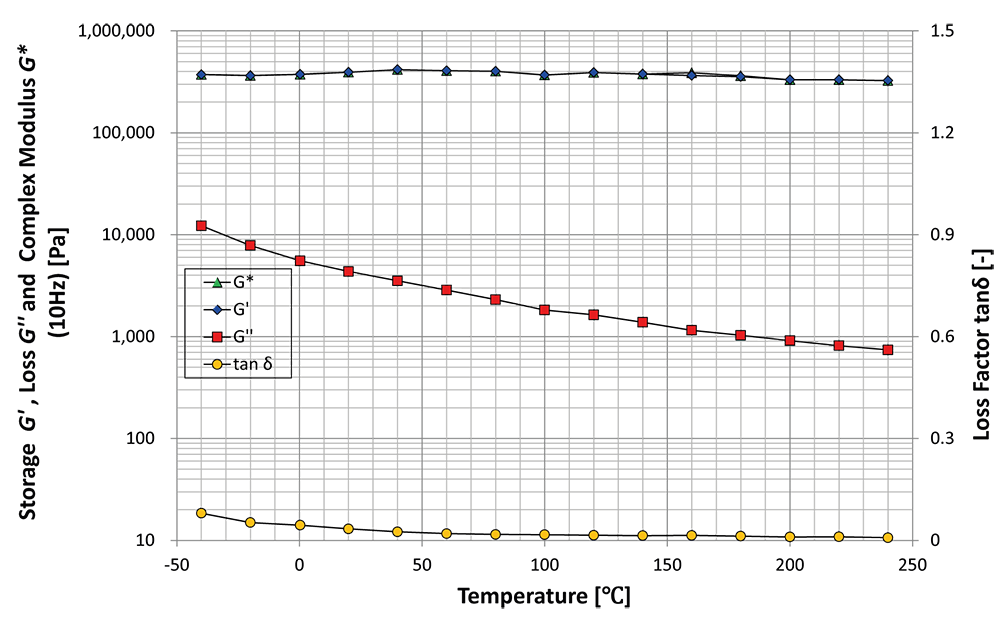

[θ-8, Frequency response]

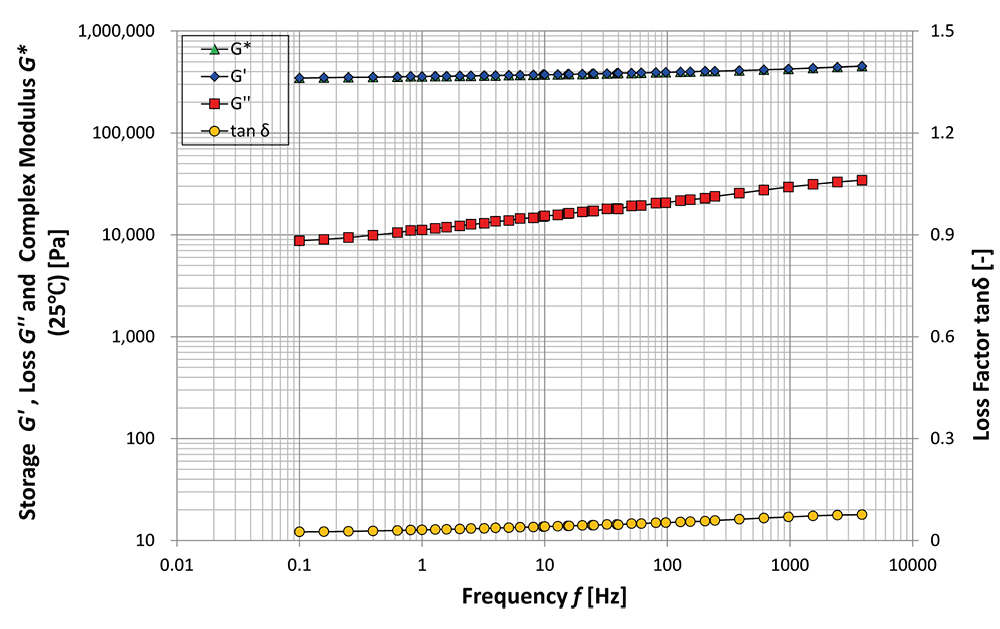

[θ-8, Temperature response]

Product Map

Product Product Type GEL-Type Length
(mm)		 Width
(mm)		 Thickness
(mm)		 Options
Theta-7
GEL Sheets		 Gel Sheets Theta-7 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Theta-5
GEL Sheets		 Gel Sheets Theta-5 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Theta-6
GEL Sheets		 Gel Sheets Theta-6 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Theta-8
GEL Sheets		 Gel Sheets Theta-8 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
GT-1 Gel Tapes
（GT）		 Theta-5 1,000 10 1 One-side powder + one-side adhesive tape
GT-2 Gel Tapes
（GT）		 Theta-5 1,000 20 1 One-side powder + one-side adhesive tape
GT-3 Gel Tapes
（GT）		 Theta-5 1,000 10 2 One-side powder + one-side adhesive tape
GT-4 Gel Tapes
（GT）		 Theta-5 1,000 20 2 One-side powder + one-side adhesive tape
GT-5 Gel Tapes
（GT）		 Theta-5 1,000 10 3 One-side powder + one-side adhesive tape
GT-6 Gel Tapes
（GT）		 Theta-5 1,000 20 3 One-side powder + one-side adhesive tape
GC-1 Gel Chips
（GC）		 Theta-5 10 10 3 One-side powder + one-side adhesive tape
GC-2 Gel Chips
（GC）		 Theta-5 10 10 5 One-side powder + one-side adhesive tape
GC-3 Gel Chips
（GC）		 Theta-5 15 15 3 One-side powder + one-side adhesive tape
GC-4 Gel Chips
（GC）		 Theta-5 15 15 5 One-side powder + one-side adhesive tape
GC-5 Gel Chips
（GC）		 Theta-5 15 15 10 One-side powder + one-side adhesive tape
GC-6 Gel Chips
（GC）		 Theta-5 20 20 3 One-side powder + one-side adhesive tape
GC-7 Gel Chips
（GC）		 Theta-5 20 20 5 One-side powder + one-side adhesive tape
GC-8 Gel Chips
（GC）		 Theta-5 20 20 10 One-side powder + one-side adhesive tape
NP GEL (Green) Foam-Type Gels Foam-Type Gels 2,000 450 3 Both sides with powder
NP GEL (White) Foam-Type Gels Foam-Type Gels 1,000 300 6 GEL

*Please swipe left or right to view table below.

Product
Theta-7
GEL Sheets
Theta-5
GEL Sheets
Theta-6
GEL Sheets
Theta-8
GEL Sheets
GT-1
GT-2
GT-3
GT-4
GT-5
GT-6
GC-1
GC-2
GC-3
GC-4
GC-5
GC-6
GC-7
GC-8
NP GEL (Green)
NP GEL (White)
Product Type GEL-Type Length
(mm)		 Width
(mm)		 Thickness
(mm)		 Options
Gel Sheets Theta-7 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Gel Sheets Theta-5 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Gel Sheets Theta-6 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Gel Sheets Theta-8 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Gel Tapes
（GT）		 Theta-5 1,000 10 1 One-side powder + one-side adhesive tape
Gel Tapes
（GT）		 Theta-5 1,000 20 1 One-side powder + one-side adhesive tape
Gel Tapes
（GT）		 Theta-5 1,000 10 2 One-side powder + one-side adhesive tape
Gel Tapes
（GT）		 Theta-5 1,000 20 2 One-side powder + one-side adhesive tape
Gel Tapes
（GT）		 Theta-5 1,000 10 3 One-side powder + one-side adhesive tape
Gel Tapes
（GT）		 Theta-5 1,000 20 3 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 10 10 3 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 10 10 5 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 15 15 3 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 15 15 5 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 θ-5 15 15 10 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 20 20 3 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 20 20 5 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 20 20 10 One-side powder + one-side adhesive tape
Foam-Type Gels Foam-Type Gels 2,000 450 3 Both sides with powder
Foam-Type Gels Foam-Type Gels 1,000 300 6 GEL

Notes

・Do not apply force, as damage may occur.

Customization
We also develop custom products to meet our customers’ individual needs. Contact us today!
