αGEL Products Gel Tapes・Gel Chips（GT・GC）

Catalogue Download

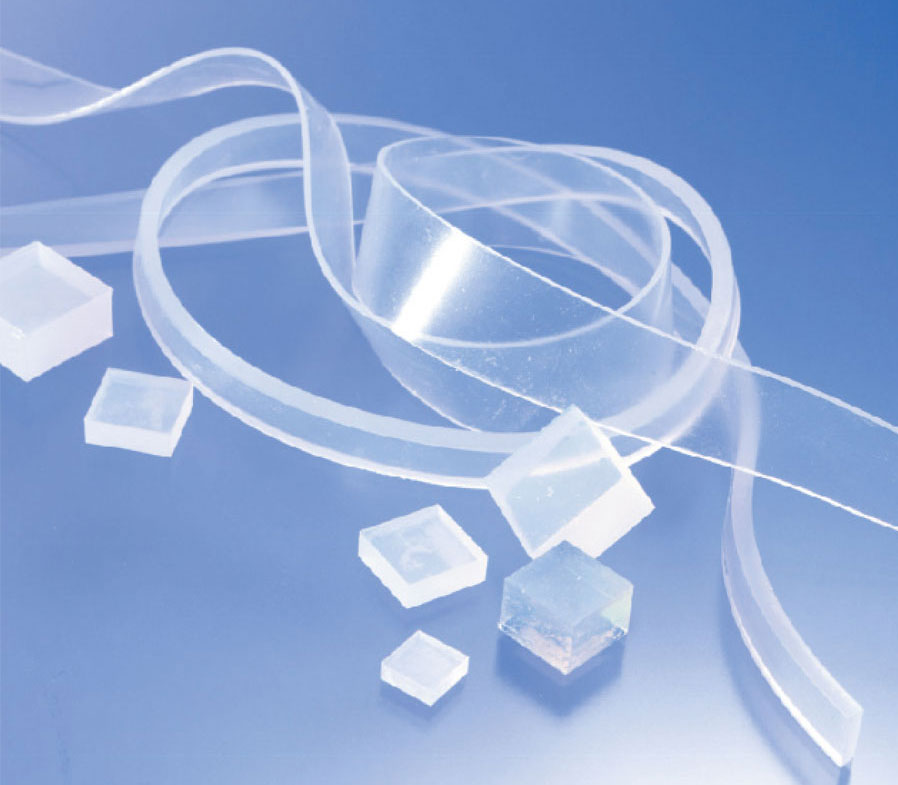

GEL Tape and GEL Chips are cuttable shock absorbent sheets that are adhesive on one side for easy application. They use a version of Alpha GEL that is both soft and strong with excellent shock absorbing and vibration damping functionality.

Characteristics
●The GT- and GC-Line offer a simple and easy solution for vibration isolation and shock absorption. They are easy to install being adhesive on one side.
●There is a wide selection of sizes to choose from.
●Very easy and effective solution for shock absorption and vibration damping, where no space is allowed for insulators or bushes.
●Wide temperature range from -40°C to 100°C.
Application Example

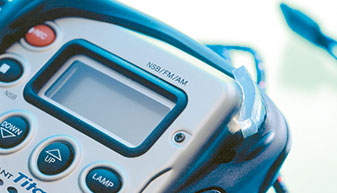

Alpha GEL provides stable performance even under severe conditions such as direct exposure to sunlight and moisture, as well as changes in external temperature, etc., protecting your radio from various type of shock resulting from being dropped or hit during outdoor use.
Technical Information

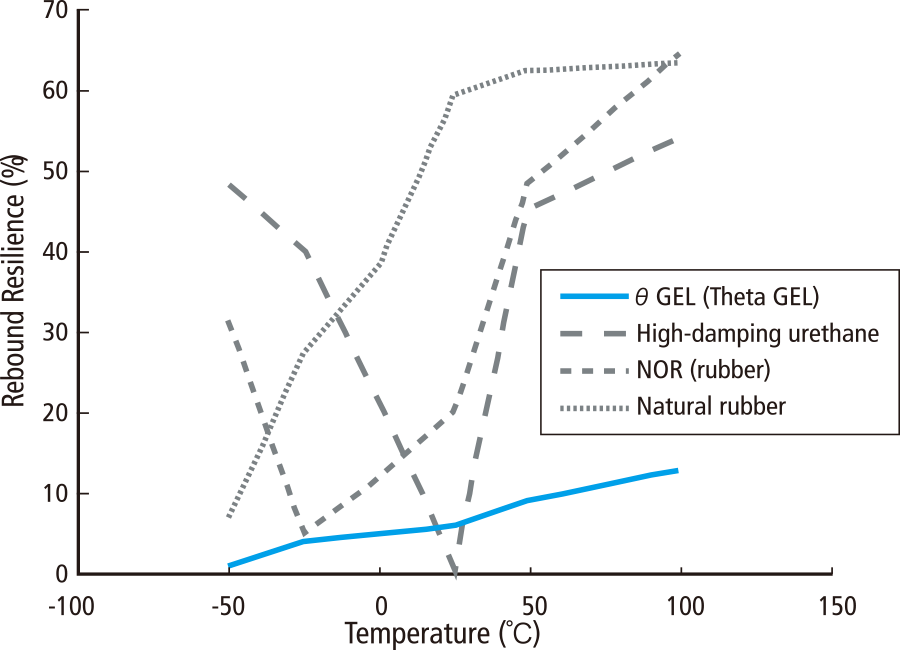

[Rebound Resilience]
Alpha GEL is temperature-independent when compared with other comparable materials.

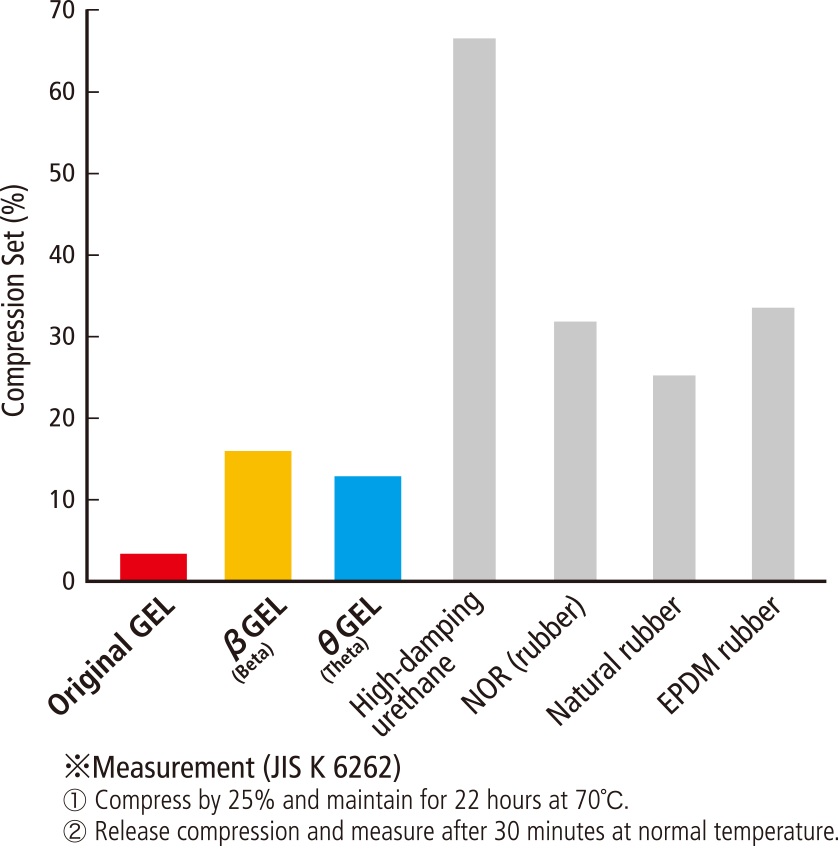

[Compression Set]
Even after prolonged compression, Alpha GEL returns to its original state.

*Please swipe left or right to view table below.

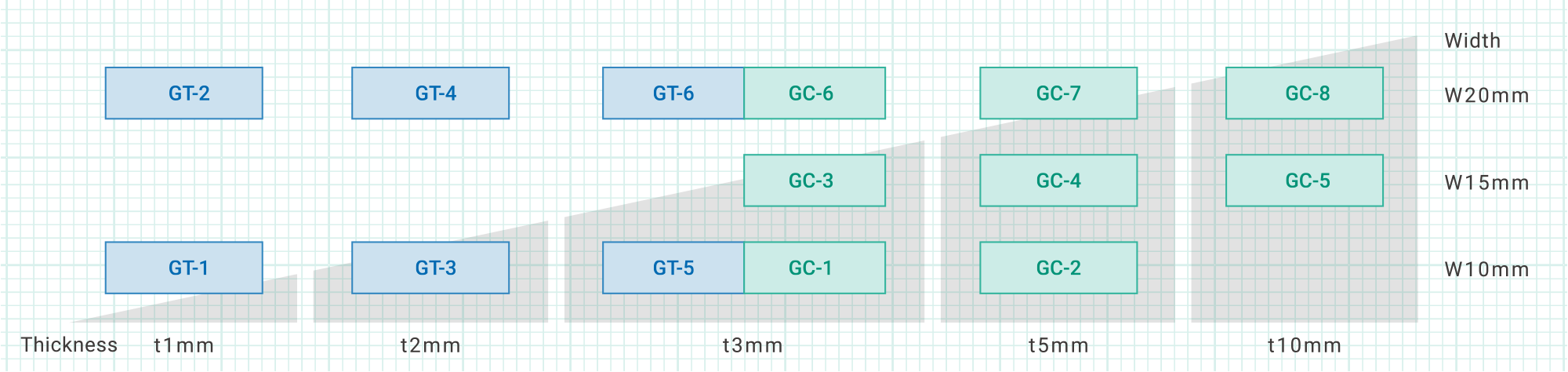

Line-up

Product Details

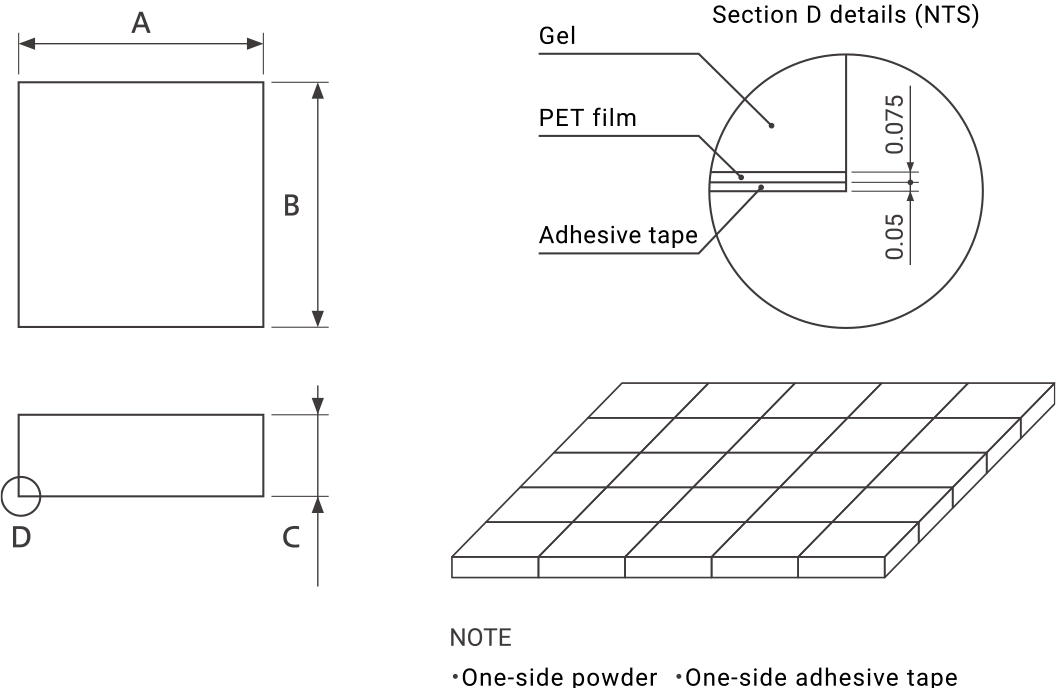

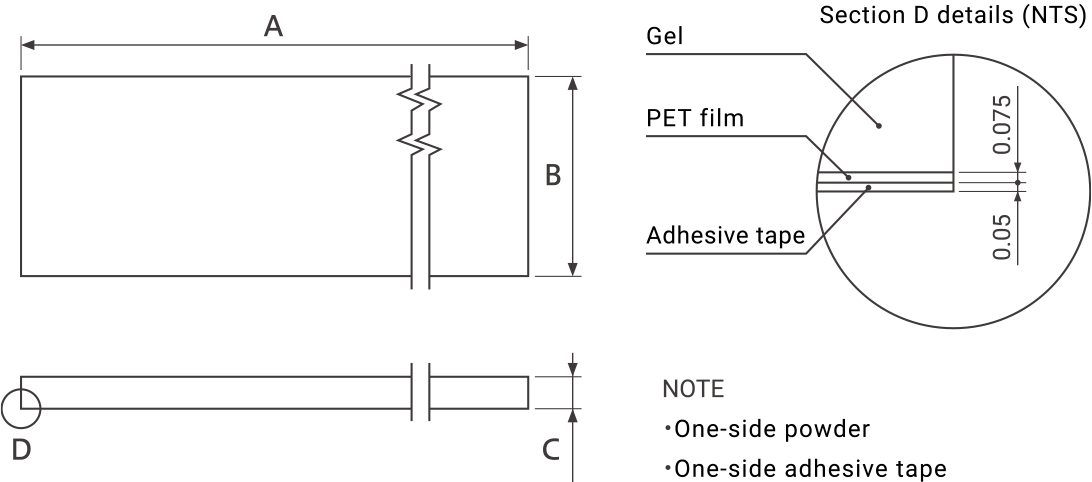

Gel Tapes(GT)
Product A B C
GT-1 1,000 10 1
GT-2 1,000 20 1
GT-3 1,000 10 2
GT-4 1,000 20 2
GT-5 1,000 10 3
GT-6 1,000 20 3

unit：mm

▼OPEN

Gel Chips(GC)
Product A B C
GC-1 10 10 3
GC-2 10 10 5
GC-3 15 15 3
GC-4 15 15 5
GC-5 15 15 10
GC-6 20 20 3
GC-7 20 20 5
GC-8 20 20 10

unit：mm

▼OPEN

*Please swipe left or right to view table below.

[Properties of θ-Gel]

Item(unit) Physical Value Remark
θ-7 θ-5 θ-6 θ-8
Appearance Translucent Translucent Translucent Translucent
Specific Gravity 1.06 1.05 1.06 1.07
Hardness Needle Penetration(1/10mm) 100 55 - - JIS K 2207
Asker C - - 33 52.5 JIS K 7312
Tensile Strength(MPa) 0.23 1.17 1.58 2.35 JIS K 6251
Elongation(%) 480 710 480 300 JIS K 6251
Young's Modulus(kPa) 37.5 119.5 670.3 1432.6
Specific Heat(J/g・K) 1.51 1.52 1.51 1.52 DSC
Thermal Conductivity(W/m・k) 0.20 0.20 0.20 0.20
Volume Resistivity(Ω・cm) 2.9×1014 4.0×1014 3.2×1014 6.6×1014 JIS K 6911
Dielectric Breakdown Strength(kV/mm) 16.3 15.1 18.4 18.7 JIS C 2110
Chemical Resistance Toluene × × × × JIS K 6258
Room temperature ×168h
Acetone × × × ×
Methanol 〇 〇 〇 〇
Distilled H2O 〇 〇 〇 〇
Fuel Oil × × × ×
Lubricant Oil × × × ×
NaCl(10%) 〇 〇 〇 〇
HCl(10%) 〇 〇 〇 〇
NaOH(5%) 〇 〇 〇 〇
Temperature Range(℃) -40～200 -40～200 -40～200 -40～200
Item(unit)
Appearance
Specific Gravity
Hardness Needle Penetration
(1/10mm)
Asker C
Tensile Strength
(MPa)
Elongation
(%)
Young's Modulus
(kPa)
Specific Heat
(J/g・K)
Thermal Conductivity
(W/m・k)
Volume Resistivity
(Ω・cm)
Dielectric Breakdown Strength
(kV/mm)
Chemical Resistance Toluene
Acetone
Methanol
Distilled H2O
Fuel Oil
Lubricant Oil
NaCl(10%)
HCl(10%)
NaOH(5%)
Temperature Range(℃))
Physical Value Remark
θ-7 θ-5 θ-6 θ-8
Translucent Translucent Translucent Translucent
1.06 1.05 1.06 1.07
100 55 - - JIS K 2207
- - 33 52.5 JIS K 7312
0.23 1.17 1.58 2.35 JIS K 6251
480 710 480 300 JIS K 6251
37.5 119.5 670.3 1432.6
1.51 1.52 1.51 1.52 DSC
0.20 0.20 0.20 0.20
2.9×1014 4.0×1014 3.2×1014 6.6×1014 JIS K 6911
16.3 15.1 18.4 18.7 JIS C 2110
× × × × JIS K 6258
Room temperature ×168h
× × × ×
〇 〇 〇 〇
〇 〇 〇 〇
× × × ×
× × × ×
〇 〇 〇 〇
〇 〇 〇 〇
〇 〇 〇 〇
-40～200 -40～200 -40～200 -40～200

※Silicone oil may bleed depending upon conditions.
※Low molecular siloxane is included in this product which basically composed of silicone.
※Above data are measured data, not guaranteed specifications.

Product Map

Product Product Type GEL-Type Length
(mm)		 Width
(mm)		 Thickness
(mm)		 Options
Theta-7
GEL Sheets		 Gel Sheets Theta-7 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Theta-5
GEL Sheets		 Gel Sheets Theta-5 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Theta-6
GEL Sheets		 Gel Sheets Theta-6 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Theta-8
GEL Sheets		 Gel Sheets Theta-8 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
GT-1 Gel Tapes
（GT）		 Theta-5 1,000 10 1 One-side powder + one-side adhesive tape
GT-2 Gel Tapes
（GT）		 Theta-5 1,000 20 1 One-side powder + one-side adhesive tape
GT-3 Gel Tapes
（GT）		 Theta-5 1,000 10 2 One-side powder + one-side adhesive tape
GT-4 Gel Tapes
（GT）		 Theta-5 1,000 20 2 One-side powder + one-side adhesive tape
GT-5 Gel Tapes
（GT）		 Theta-5 1,000 10 3 One-side powder + one-side adhesive tape
GT-6 Gel Tapes
（GT）		 Theta-5 1,000 20 3 One-side powder + one-side adhesive tape
GC-1 Gel Chips
（GC）		 Theta-5 10 10 3 One-side powder + one-side adhesive tape
GC-2 Gel Chips
（GC）		 Theta-5 10 10 5 One-side powder + one-side adhesive tape
GC-3 Gel Chips
（GC）		 Theta-5 15 15 3 One-side powder + one-side adhesive tape
GC-4 Gel Chips
（GC）		 Theta-5 15 15 5 One-side powder + one-side adhesive tape
GC-5 Gel Chips
（GC）		 Theta-5 15 15 10 One-side powder + one-side adhesive tape
GC-6 Gel Chips
（GC）		 Theta-5 20 20 3 One-side powder + one-side adhesive tape
GC-7 Gel Chips
（GC）		 Theta-5 20 20 5 One-side powder + one-side adhesive tape
GC-8 Gel Chips
（GC）		 Theta-5 20 20 10 One-side powder + one-side adhesive tape
NP GEL (Green) Foam-Type Gels Foam-Type Gels 2,000 450 3 Both sides with powder
NP GEL (White) Foam-Type Gels Foam-Type Gels 1,000 300 6 GEL

*Please swipe left or right to view table below.

Product
Theta-7
GEL Sheets
Theta-5
GEL Sheets
Theta-6
GEL Sheets
Theta-8
GEL Sheets
GT-1
GT-2
GT-3
GT-4
GT-5
GT-6
GC-1
GC-2
GC-3
GC-4
GC-5
GC-6
GC-7
GC-8
NP GEL (Green)
NP GEL (White)
Product Type GEL-Type Length
(mm)		 Width
(mm)		 Thickness
(mm)		 Options
Gel Sheets Theta-7 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Gel Sheets Theta-5 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Gel Sheets Theta-6 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Gel Sheets Theta-8 250/500 250/500 Optional GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky
Gel Tapes
（GT）		 Theta-5 1,000 10 1 One-side powder + one-side adhesive tape
Gel Tapes
（GT）		 Theta-5 1,000 20 1 One-side powder + one-side adhesive tape
Gel Tapes
（GT）		 Theta-5 1,000 10 2 One-side powder + one-side adhesive tape
Gel Tapes
（GT）		 Theta-5 1,000 20 2 One-side powder + one-side adhesive tape
Gel Tapes
（GT）		 Theta-5 1,000 10 3 One-side powder + one-side adhesive tape
Gel Tapes
（GT）		 Theta-5 1,000 20 3 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 10 10 3 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 10 10 5 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 15 15 3 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 15 15 5 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 θ-5 15 15 10 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 20 20 3 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 20 20 5 One-side powder + one-side adhesive tape
Gel Chips
（GC）		 Theta-5 20 20 10 One-side powder + one-side adhesive tape
Foam-Type Gels Foam-Type Gels 2,000 450 3 Both sides with powder
Foam-Type Gels Foam-Type Gels 1,000 300 6 GEL

Notes

  • ・Before use, remove dust from the object.
  • ・Attach with even pressure after removing the separation liner paper.
  • ・Apply sufficient pressure to securely attach PSA (pressure-sensitive adhesive).
  • ・Powder is applied to the surface of Gel.
Customization
We also develop custom products to meet our customers’ individual needs. Contact us today!
