αGEL Products
Foam-Type Gels（NP Gel）
NP GEL is a light and durable silicone foam material. Unlike polyurethane foam, NP GEL has a very low compression set, does not wear out easily, can be used in a wide range of temperatures, and has high long-term reliability.
- Characteristics
- ●This is a lightweight and highly durable Alpha GEL foam material.
- ●With a low compression set, performance of NP Gel is maintained even after repeated compression.
- ●Highly flame retardant and operable in the -40°C to 200°C range.
- ●Good for outdoor use because it is highly resistant to weather and ozone.
- Application Example

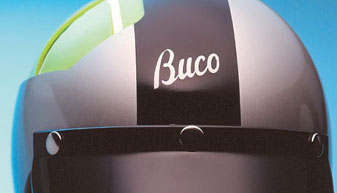

- The only 3 mm thick Gel foam sheet effectively absorbs shock, making it possible to decrease the thickness of the helmet. This results in a lighter weight further extending the possibilities of design.
- Technical Information
-

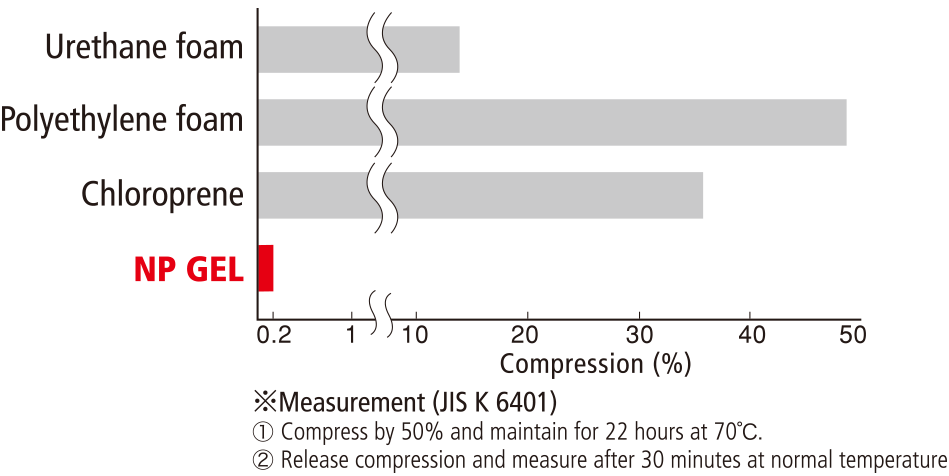

[Compression Set of NP Gel]
- Packaging
-

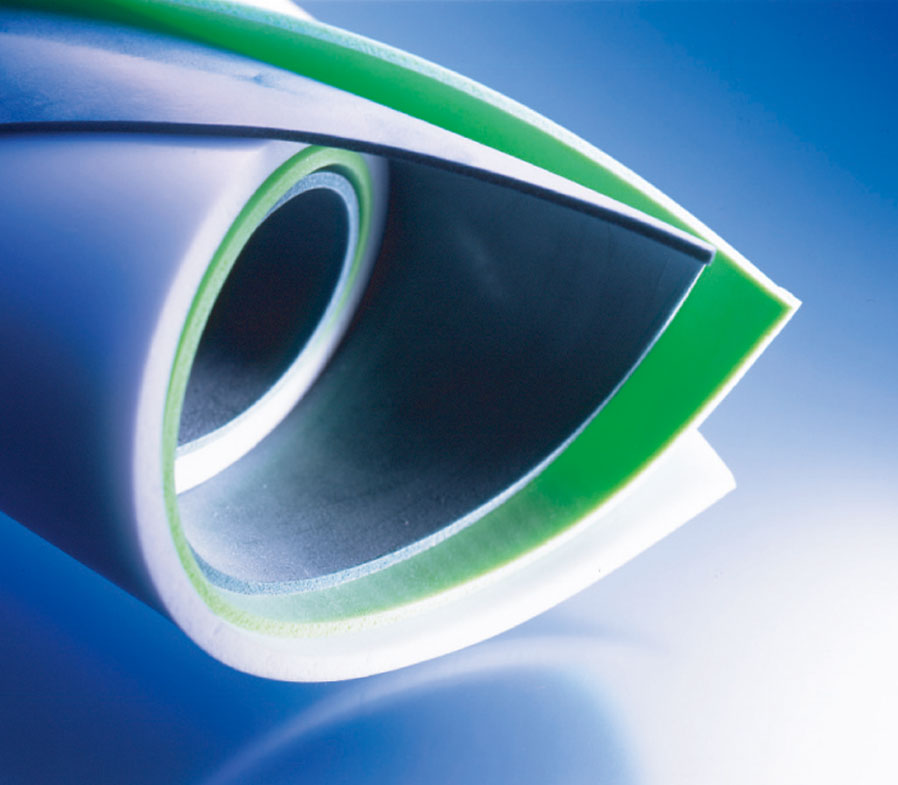

Color Width（mm）×Length（mm）×Thickness（mm） NP Gel (Green) : Roll 450×2,000〜×3※ NP Gel (White) : Sheet 300×1,000〜×6 ※Powder is applied to the surface for 3mm thick material.
Product Details
[Properties of NP Gel]
| Item(unit) | Physical Value | Remark | |
| NPGEL (Foam-Type Gels) |
|||
| Appearance | Green or White | ||
| Specific Gravity | 0.26 | ||
| Hardness | Needle Penetration(1/10mm) | - | JIS K 2207 |
| Asker C | - | JIS K 7312 | |
| Tensile Strength(MPa) | 0.32 | JIS K 6251 | |
| Elongation(%) | 73 | JIS K 6251 | |
| Young's Modulus(kPa) | 269.5 | ||
| Specific Heat(J/g・K) | 1.15 | DSC | |
| Thermal Conductivity(W/m・k) | 0.06 | ||
| Volume Resistivity(Ω・cm) | 3.8×1014 | JIS K 6911 | |
| Dielectric Breakdown Strength(kV/mm) | 3.8 | JIS C 2110 | |
| Chemical Resistance | Toluene | × | JIS K 6258 Room temperature ×168h |
| Acetone | × | ||
| Methanol | 〇 | ||
| Distilled H2O | 〇 | ||
| Fuel Oil | × | ||
| Lubricant Oil | × | ||
| NaCl(10%) | 〇 | ||
| HCl(10%) | 〇 | ||
| NaOH(5%) | 〇 | ||
| Temperature Range(℃) | -40～200 | ||
※Silicone oil may bleed depending upon conditions.
※Low molecular siloxane is included in this product which basically composed of silicone,
※Above data are measured data, not guaranteed specifications.
Product Map
| Product | Product Type | GEL-Type | Length (mm) |
Width (mm) |
Thickness (mm) |
Options |
|---|---|---|---|---|---|---|
| Theta-7 GEL Sheets |
Gel Sheets | Theta-7 | 250/500 | 250/500 | Optional | GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky |
| Theta-5 GEL Sheets |
Gel Sheets | Theta-5 | 250/500 | 250/500 | Optional | GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky |
| Theta-6 GEL Sheets |
Gel Sheets | Theta-6 | 250/500 | 250/500 | Optional | GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky |
| Theta-8 GEL Sheets |
Gel Sheets | Theta-8 | 250/500 | 250/500 | Optional | GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky |
| GT-1 | Gel Tapes （GT） |
Theta-5 | 1,000 | 10 | 1 | One-side powder + one-side adhesive tape |
| GT-2 | Gel Tapes （GT） |
Theta-5 | 1,000 | 20 | 1 | One-side powder + one-side adhesive tape |
| GT-3 | Gel Tapes （GT） |
Theta-5 | 1,000 | 10 | 2 | One-side powder + one-side adhesive tape |
| GT-4 | Gel Tapes （GT） |
Theta-5 | 1,000 | 20 | 2 | One-side powder + one-side adhesive tape |
| GT-5 | Gel Tapes （GT） |
Theta-5 | 1,000 | 10 | 3 | One-side powder + one-side adhesive tape |
| GT-6 | Gel Tapes （GT） |
Theta-5 | 1,000 | 20 | 3 | One-side powder + one-side adhesive tape |
| GC-1 | Gel Chips （GC） |
Theta-5 | 10 | 10 | 3 | One-side powder + one-side adhesive tape |
| GC-2 | Gel Chips （GC） |
Theta-5 | 10 | 10 | 5 | One-side powder + one-side adhesive tape |
| GC-3 | Gel Chips （GC） |
Theta-5 | 15 | 15 | 3 | One-side powder + one-side adhesive tape |
| GC-4 | Gel Chips （GC） |
Theta-5 | 15 | 15 | 5 | One-side powder + one-side adhesive tape |
| GC-5 | Gel Chips （GC） |
Theta-5 | 15 | 15 | 10 | One-side powder + one-side adhesive tape |
| GC-6 | Gel Chips （GC） |
Theta-5 | 20 | 20 | 3 | One-side powder + one-side adhesive tape |
| GC-7 | Gel Chips （GC） |
Theta-5 | 20 | 20 | 5 | One-side powder + one-side adhesive tape |
| GC-8 | Gel Chips （GC） |
Theta-5 | 20 | 20 | 10 | One-side powder + one-side adhesive tape |
| NP GEL (Green) | Foam-Type Gels | Foam-Type Gels | 2,000 | 450 | 3 | Both sides with powder |
| NP GEL (White) | Foam-Type Gels | Foam-Type Gels | 1,000 | 300 | 6 | GEL |
*Please swipe left or right to view table below.
| Product |
|---|
| Theta-7 GEL Sheets |
| Theta-5 GEL Sheets |
| Theta-6 GEL Sheets |
| Theta-8 GEL Sheets |
| GT-1 |
| GT-2 |
| GT-3 |
| GT-4 |
| GT-5 |
| GT-6 |
| GC-1 |
| GC-2 |
| GC-3 |
| GC-4 |
| GC-5 |
| GC-6 |
| GC-7 |
| GC-8 |
| NP GEL (Green) |
| NP GEL (White) |
| Product Type | GEL-Type | Length (mm) |
Width (mm) |
Thickness (mm) |
Options |
|---|---|---|---|---|---|
| Gel Sheets | Theta-7 | 250/500 | 250/500 | Optional | GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky |
| Gel Sheets | Theta-5 | 250/500 | 250/500 | Optional | GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky |
| Gel Sheets | Theta-6 | 250/500 | 250/500 | Optional | GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky |
| Gel Sheets | Theta-8 | 250/500 | 250/500 | Optional | GEL/with PET Film/with Adhesive Tape/with Powder/Non-tacky |
| Gel Tapes （GT） |
Theta-5 | 1,000 | 10 | 1 | One-side powder + one-side adhesive tape |
| Gel Tapes （GT） |
Theta-5 | 1,000 | 20 | 1 | One-side powder + one-side adhesive tape |
| Gel Tapes （GT） |
Theta-5 | 1,000 | 10 | 2 | One-side powder + one-side adhesive tape |
| Gel Tapes （GT） |
Theta-5 | 1,000 | 20 | 2 | One-side powder + one-side adhesive tape |
| Gel Tapes （GT） |
Theta-5 | 1,000 | 10 | 3 | One-side powder + one-side adhesive tape |
| Gel Tapes （GT） |
Theta-5 | 1,000 | 20 | 3 | One-side powder + one-side adhesive tape |
| Gel Chips （GC） |
Theta-5 | 10 | 10 | 3 | One-side powder + one-side adhesive tape |
| Gel Chips （GC） |
Theta-5 | 10 | 10 | 5 | One-side powder + one-side adhesive tape |
| Gel Chips （GC） |
Theta-5 | 15 | 15 | 3 | One-side powder + one-side adhesive tape |
| Gel Chips （GC） |
Theta-5 | 15 | 15 | 5 | One-side powder + one-side adhesive tape |
| Gel Chips （GC） |
θ-5 | 15 | 15 | 10 | One-side powder + one-side adhesive tape |
| Gel Chips （GC） |
Theta-5 | 20 | 20 | 3 | One-side powder + one-side adhesive tape |
| Gel Chips （GC） |
Theta-5 | 20 | 20 | 5 | One-side powder + one-side adhesive tape |
| Gel Chips （GC） |
Theta-5 | 20 | 20 | 10 | One-side powder + one-side adhesive tape |
| Foam-Type Gels | Foam-Type Gels | 2,000 | 450 | 3 | Both sides with powder |
| Foam-Type Gels | Foam-Type Gels | 1,000 | 300 | 6 | GEL |
Notes
・Powder is applied to the surface of Gel.
- Customization
- We also develop custom products to meet our customers’ individual needs. Contact us today!
